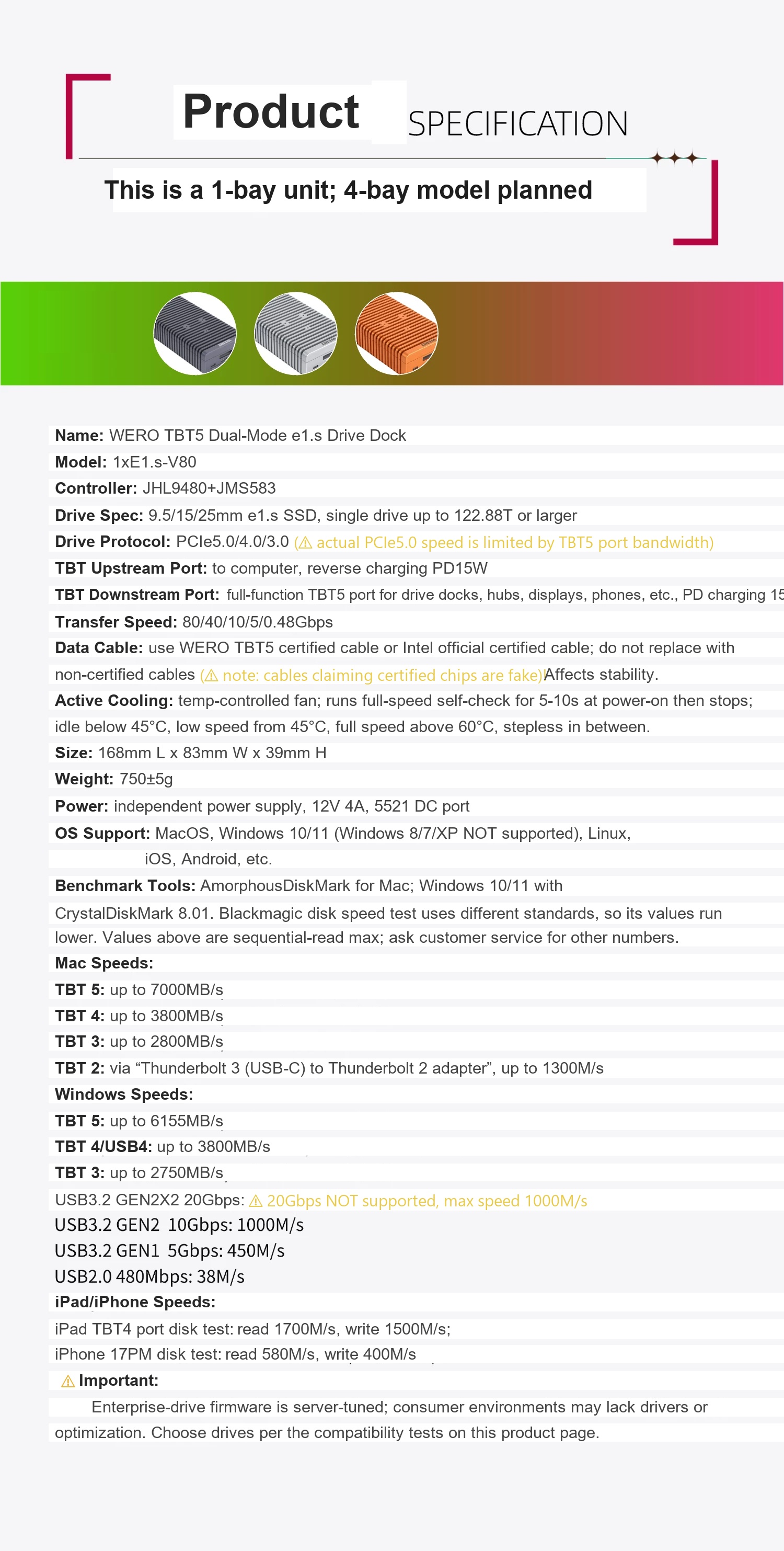

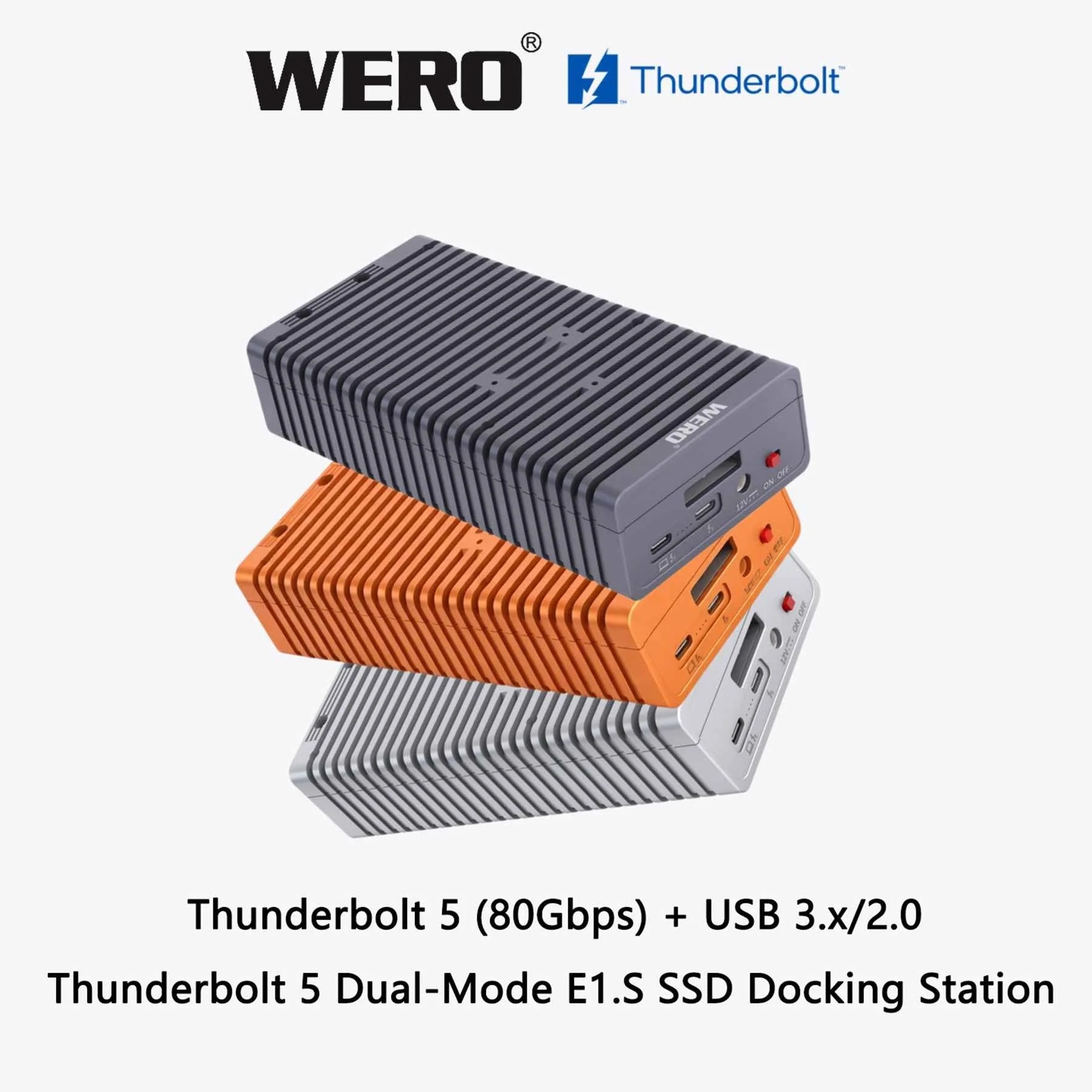

Name: WERO Thunderbolt 5 Dual-Mode e1.s SSD Enclosure
Model: 1xE1.s-V80

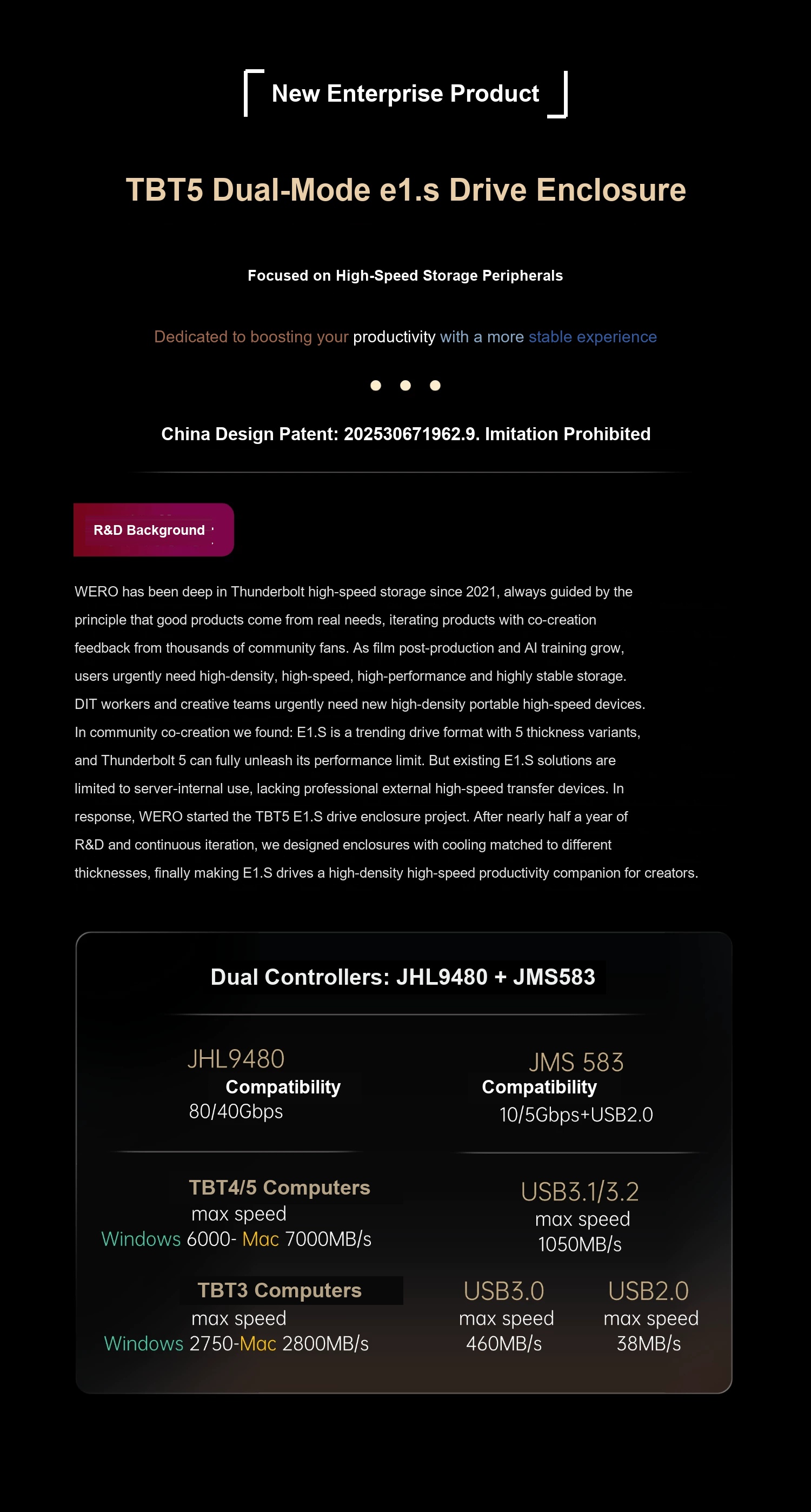

Controller: JHL9480 + JMS583

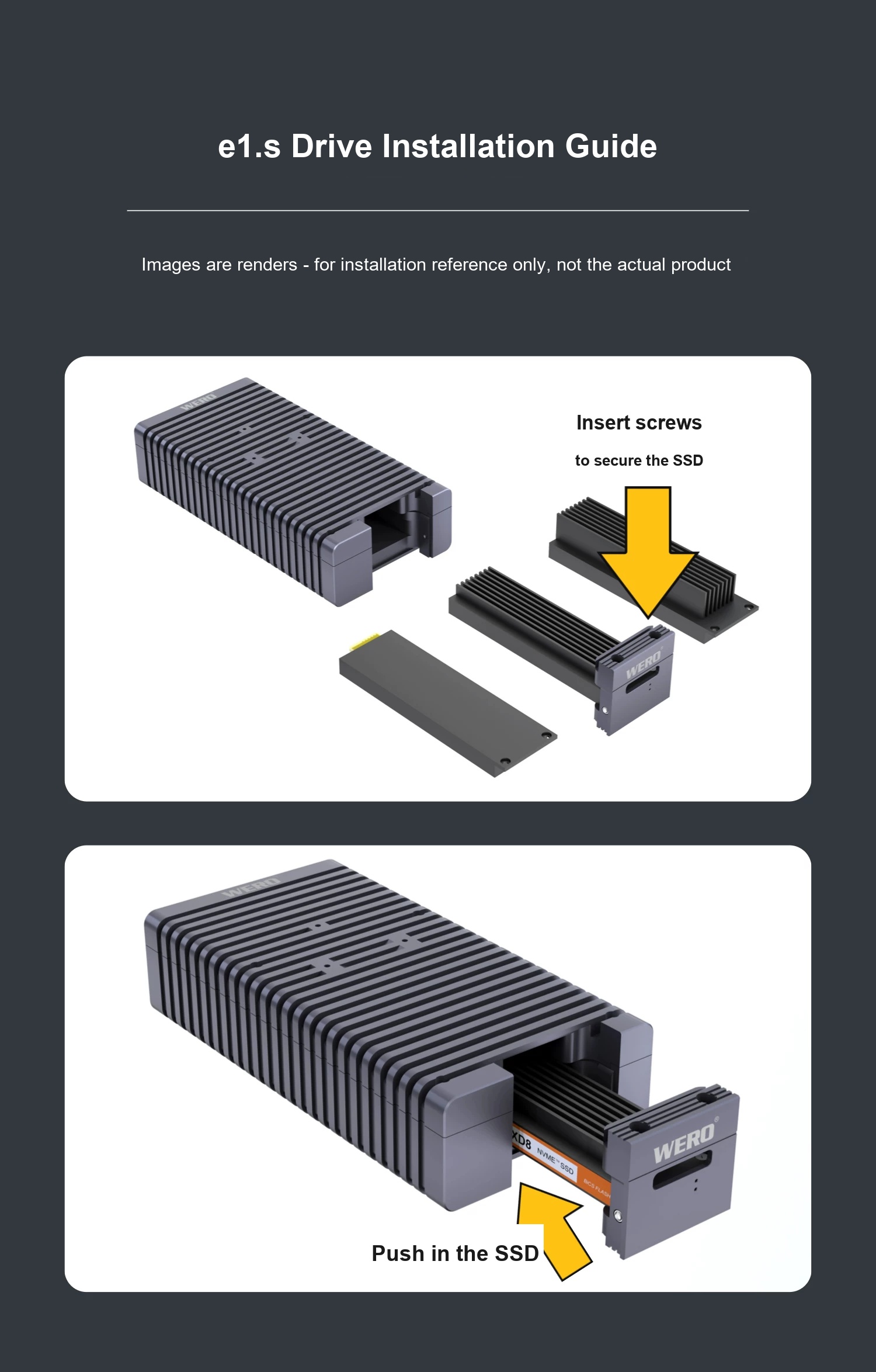

SSD Compatibility: 9.5/15/25mm e1.s SSD
SSD Transfer Protocol: PCIe 5.0/4.0/3.0 compatible (⚠️ Actual speed of PCIe 5.0 drives is limited by Thunderbolt 5 port bandwidth)
Thunderbolt Upstream Port: Connects to computers; Supports 15W PD reverse charging
Thunderbolt Downstream Port: Full-featured Thunderbolt 5 port; Compatible with hard drive enclosures, docks, monitors, mobile phones, etc.; Supports 15W PD charging
Transfer Speed: 80/40/10/5/0.48Gbps
Cable: WERO Thunderbolt 5 cable (Intel officially certified). DO NOT replace with non-officially certified cables (⚠️ Note: Cables claiming to have certified chips are fake! This will affect stability.)
Active Cooling: Temperature-controlled fan. Runs at full speed for 5-10 seconds during power-on self-test (POST) then stops. Remains off below 45°C, starts low-speed rotation at 45°C, and switches to full-speed rotation above 60°C. Stepless speed adjustment based on temperature in between.

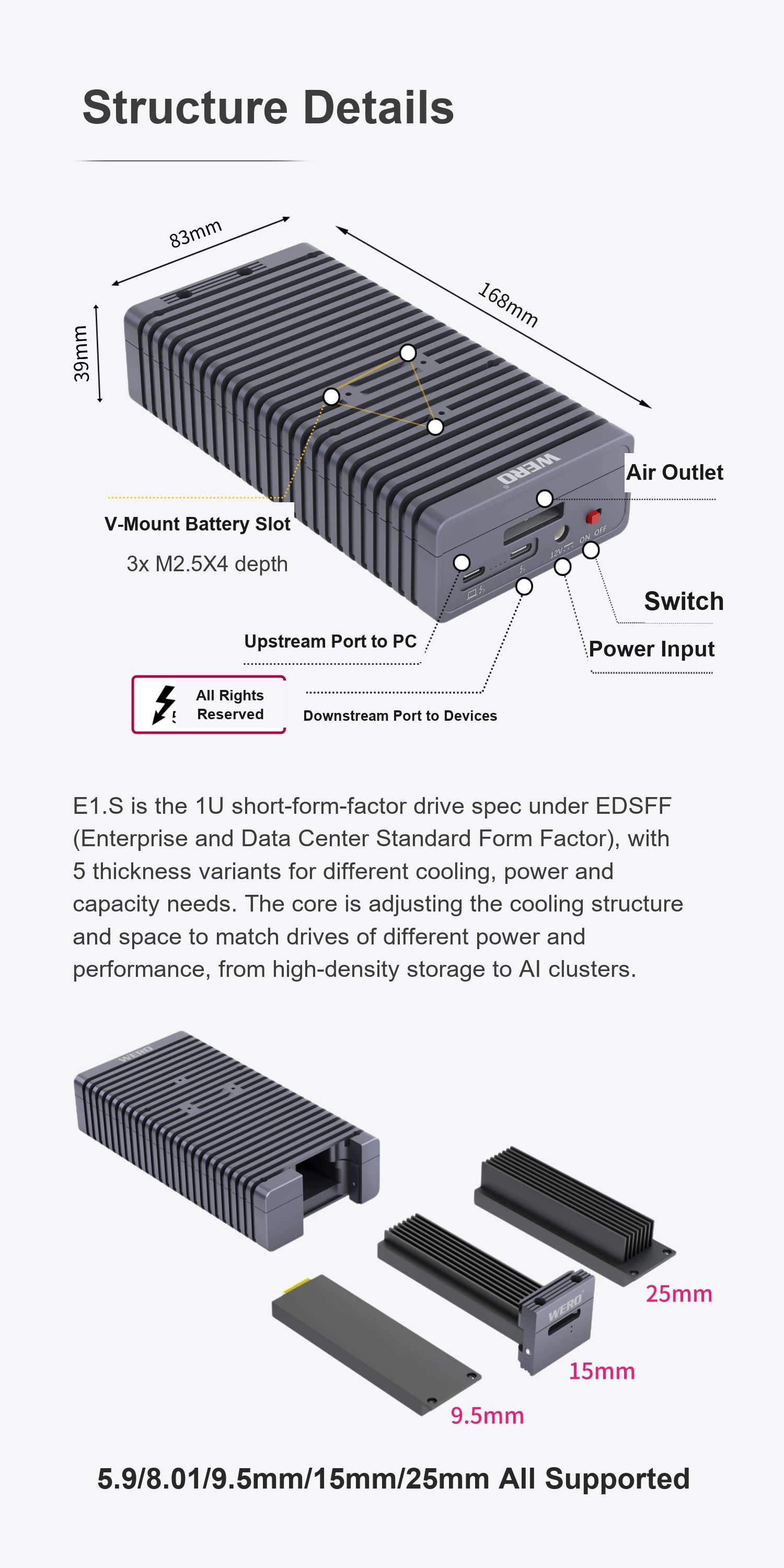

Dimensions: 168mm (L) × 83mm (W) × 39mm (H)
Weight: 750 ± 5 grams

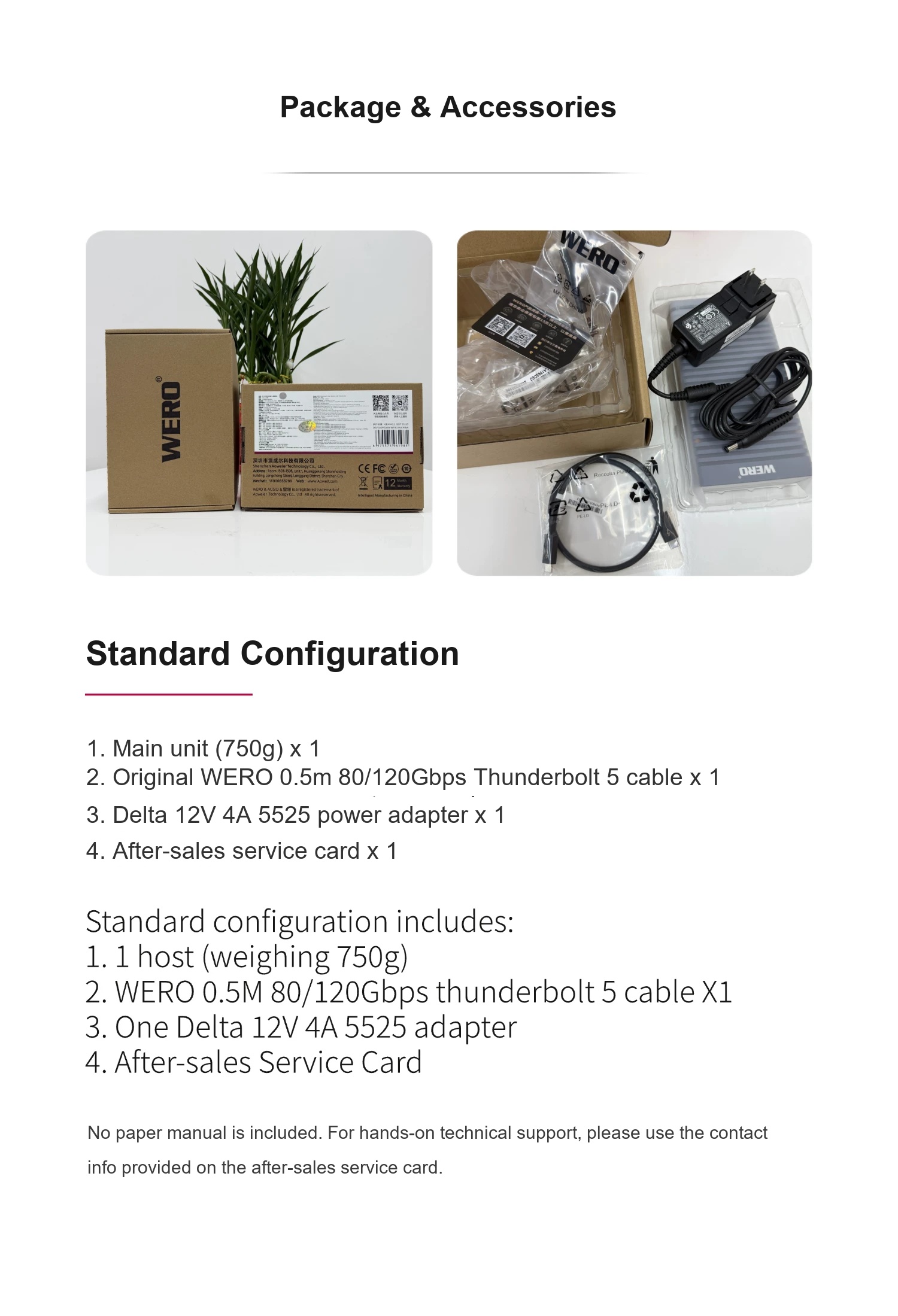

Power Supply: Independent power adapter (12V 4A, 5521 DC port).
System Compatibility:MacOS, Windows 10/11 (Does not support Windows 8/7/XP, etc.)、Linux、iOS, Android, etc.

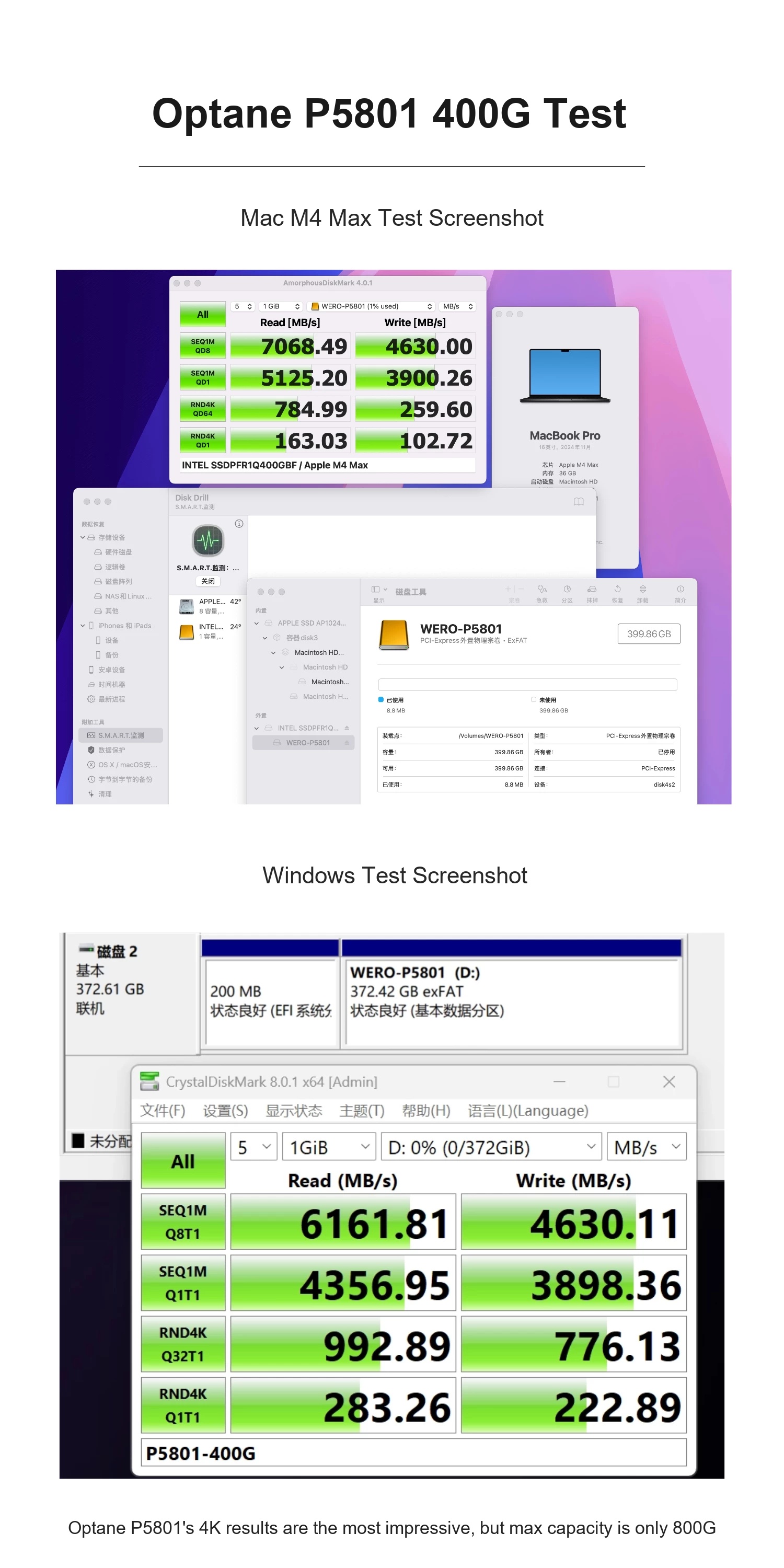

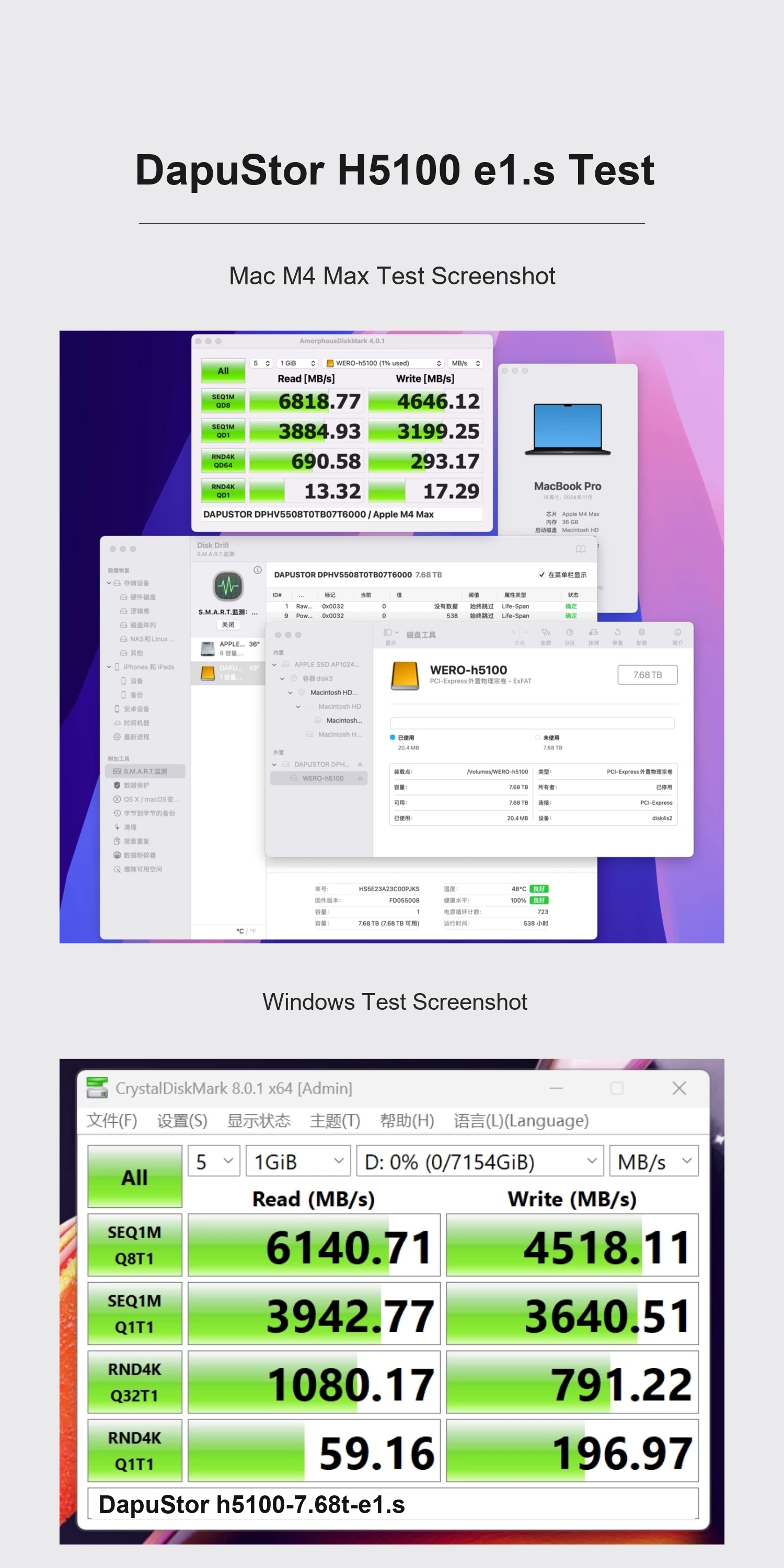

Speed Testing Tools
For Apple Mac: Use AmorphousDiskMark；For Windows 10/11: Use CrystalDiskMark 8.01
⚠️ Note: Blackmagic Disk Speed Test may show lower values due to different testing standards. The above speeds represent maximum sequential read speeds. For other values, please contact customer service.

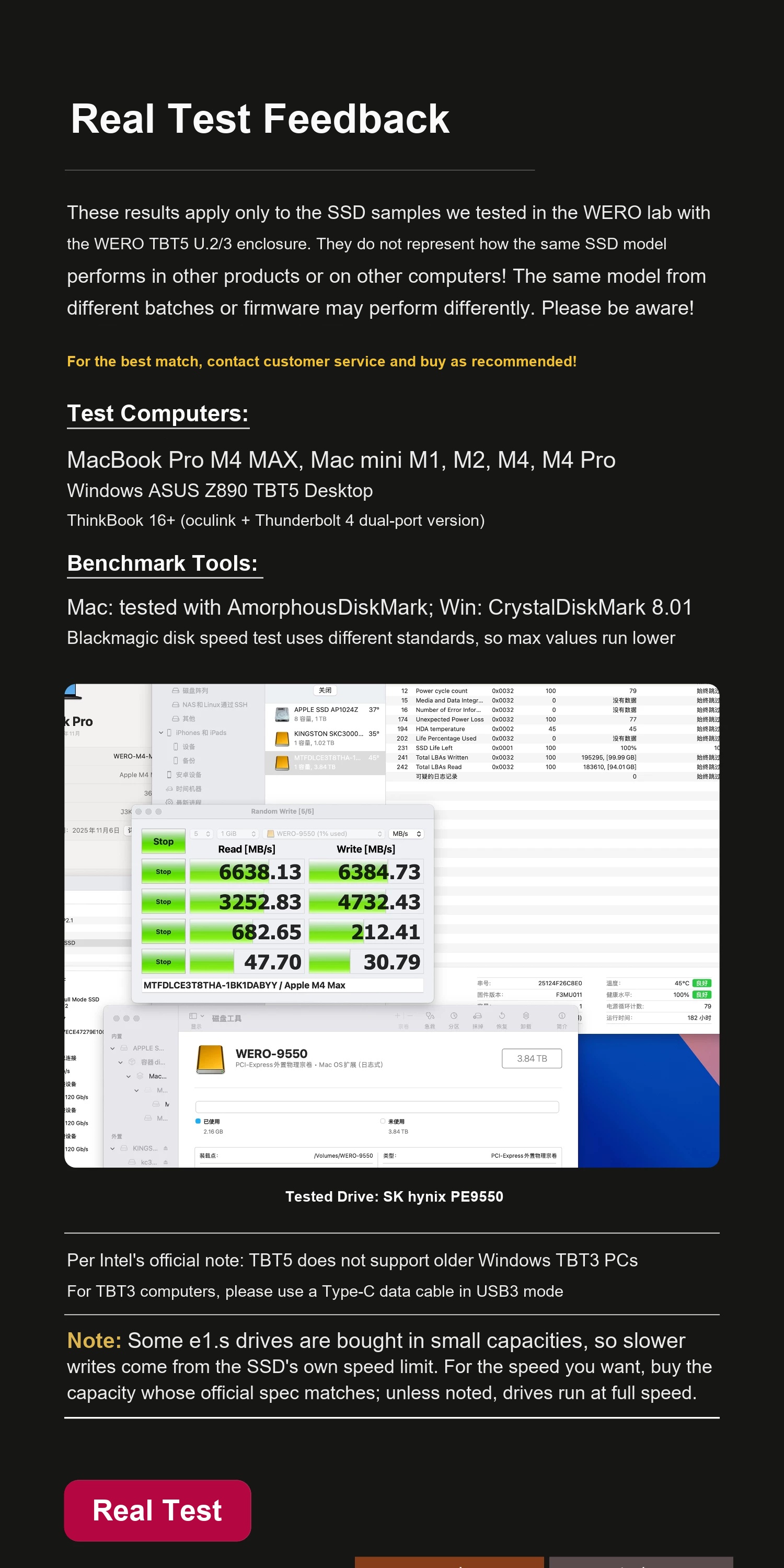

Speed Performance On Mac
Thunderbolt 5: Up to 7000MB/s (7000 megabytes per second)
Thunderbolt 4: Up to 3800MB/s (3800 megabytes per second)
Thunderbolt 3: Up to 2800MB/s (2800 megabytes per second)
Thunderbolt 2: Supported via “Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter”; Speed up to 1300MB/s
On Windows
Thunderbolt 5: Up to 6155MB/s (6155 megabytes per second)
Thunderbolt 4/USB4: Up to 3800MB/s (3800 megabytes per second)
Thunderbolt 3: Up to 2750MB/s (2750 megabytes per second)
USB3.2 GEN2X2 20Gbps: ⚠️ 20Gbps speed not supported; Maximum speed limited to 1000MB/s
USB3.2 GEN2 10Gbps: 1000MB/s
USB3.2 GEN1 5Gbps: 450MB/s
USB2.0 480Mbps: 38MB/s
On iPad/iPhone
iPad Thunderbolt 4 port (tested with Disk Test): Read 1700MB/s, Write 1500MB/s
iPhone 17 Pro Max (tested with Disk Test): Read 580MB/s, Write 400MB/s
⚠️ Important Notes

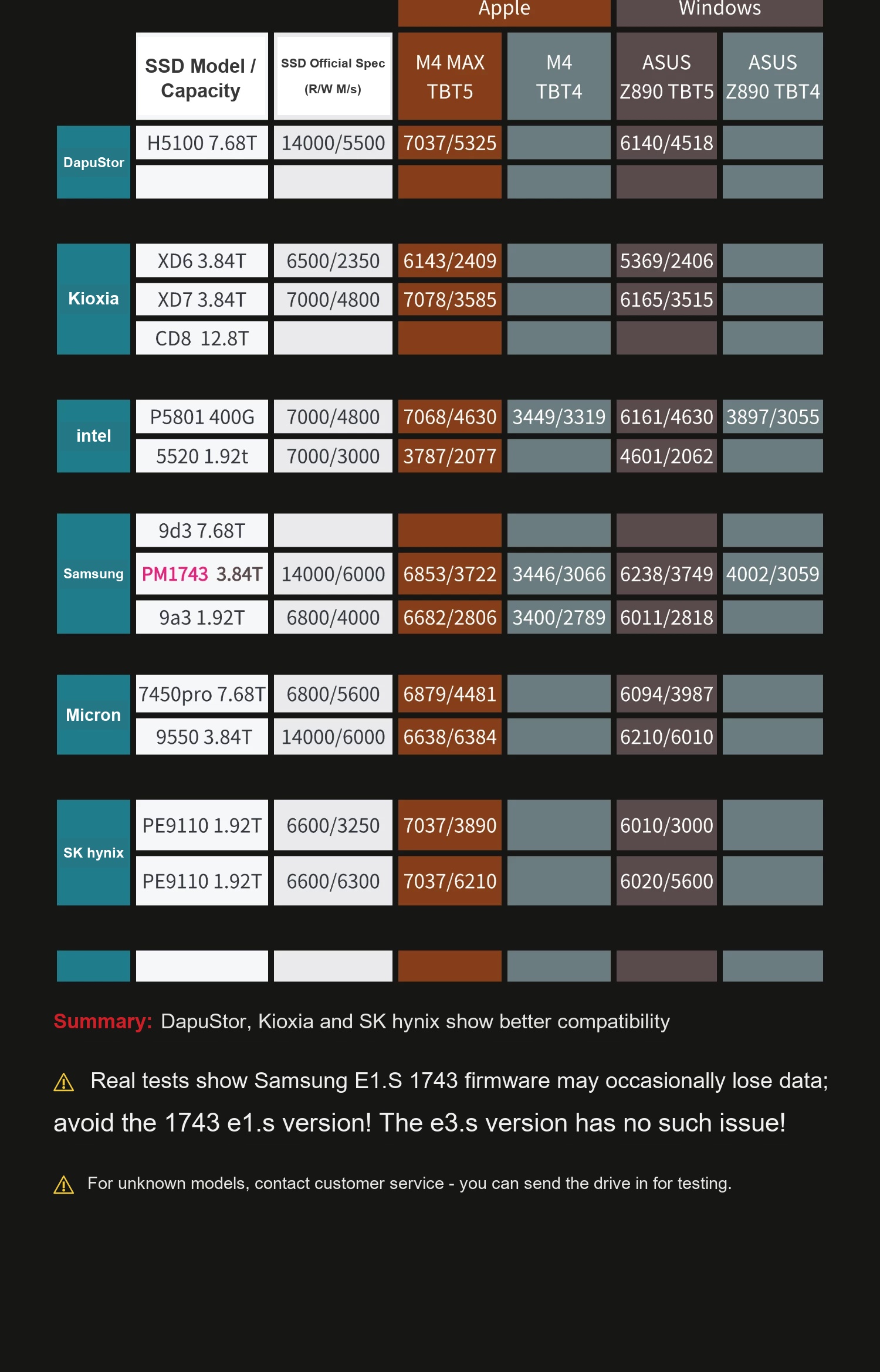

Enterprise SSD firmware is customized for server environments and may lack drivers or optimal performance for consumer use. Please refer to the compatibility test results on the product details page before purchasing hard drives.
