Scenes where WERO Gen 2 becomes your secret weapon
▸ On‑set DIT & post‑production
Wrap a commercial shoot and immediately offload 1TB of ARRIRAW or Blackmagic RAW. Hand the director the same drive to review 8K dailies in DaVinci Resolve—no proxy generation, no transcoding. The active cooling keeps speeds pinned at 6,000MB/s even after the 4th magazine dump.
▸ Unreal Engine 5 & real‑time 3D
Load a 500GB Metahuman project directly from the WERO enclosure. Jump between multiple Unreal Engine builds without touching the internal drive. Frame‑perfect playback on location, in the edit bay, or at a client pitch.
▸ Music production & live performance
Stream Omnisphere, Keyscape, and orchestral libraries in real time from the WERO while recording 64‑channel stems. The fan stays whisper‑quiet—your condenser mics won’t even know it’s there. Bus‑powered means one less cable on the tour rig.
▸ High‑volume photography
Ingest a 4,000‑shot wedding gallery (50MP RAW) in under two minutes. Cull in Lightroom with zero preview lag. Deliver the entire catalog to clients by handing them the drive, not a Dropbox link.
▸ Enterprise & system administrators
Clone and deploy corporate OS images across fleets. Carry a bootable 4TB environment that launches on any Thunderbolt‑equipped machine. Disk‑to‑disk verification completes before you finish your coffee.
Thunderbolt 5. Real bandwidth. Real speed.
80Gbps bi‑directional and up to 120Gbps asymmetric boost means 6,000MB/s sustained throughput. The Gen 2 enclosure works backward with Thunderbolt 4, Thunderbolt 3, USB4, and USB‑C—any port in your studio becomes a direct pipeline to your NVMe drive.
Engineered to never throttle
The Gen 2 uses a refined aluminum body and an enhanced active‑fan thermal design. Even when writing 8TB without interruption, the drive temperature stays well inside safe limits. You get the full speed from the first byte to the last.
Tool‑free swap in seconds
Slide open the case, drop in any single‑ or double‑sided M.2 NVMe stick (2230/2242/2260/2280), and snap it shut. Carry three drives to a shoot and swap them quicker than you can change a lens.
Core specs
- Thunderbolt 5 certified — 80/120Gbps, 6,000MB/s transfer rate
- NVMe M.2 interface — supports 2230, 2242, 2260, 2280 (single & double‑side)
- Maximum capacity: 8TB (SSD sold separately)
- Active cooling — ultra‑quiet fan integrated into aluminum chassis
- Bus‑powered — single Thunderbolt cable for data and power
- Compatible with macOS, Windows 11/10, iPad Pro, Linux
- Dimensions: fits any laptop sleeve, camera bag, or Pelican case

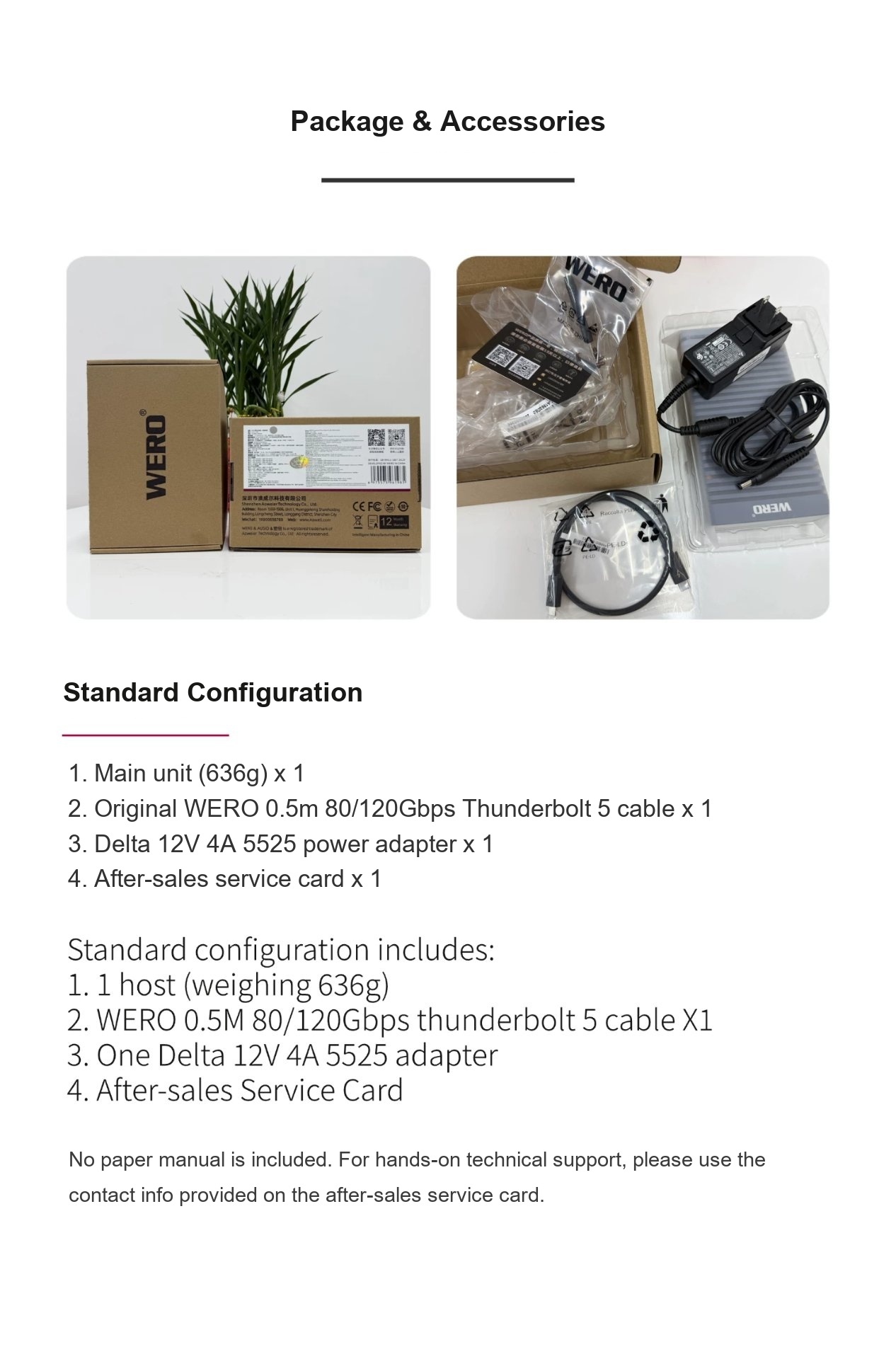

What’s included
WERO Thunderbolt 5 Enclosure Gen 2, 1 × certified Thunderbolt 5 USB‑C cable (0.5m), Quick Start Guide. NVMe SSD not included — install your own and get to work.

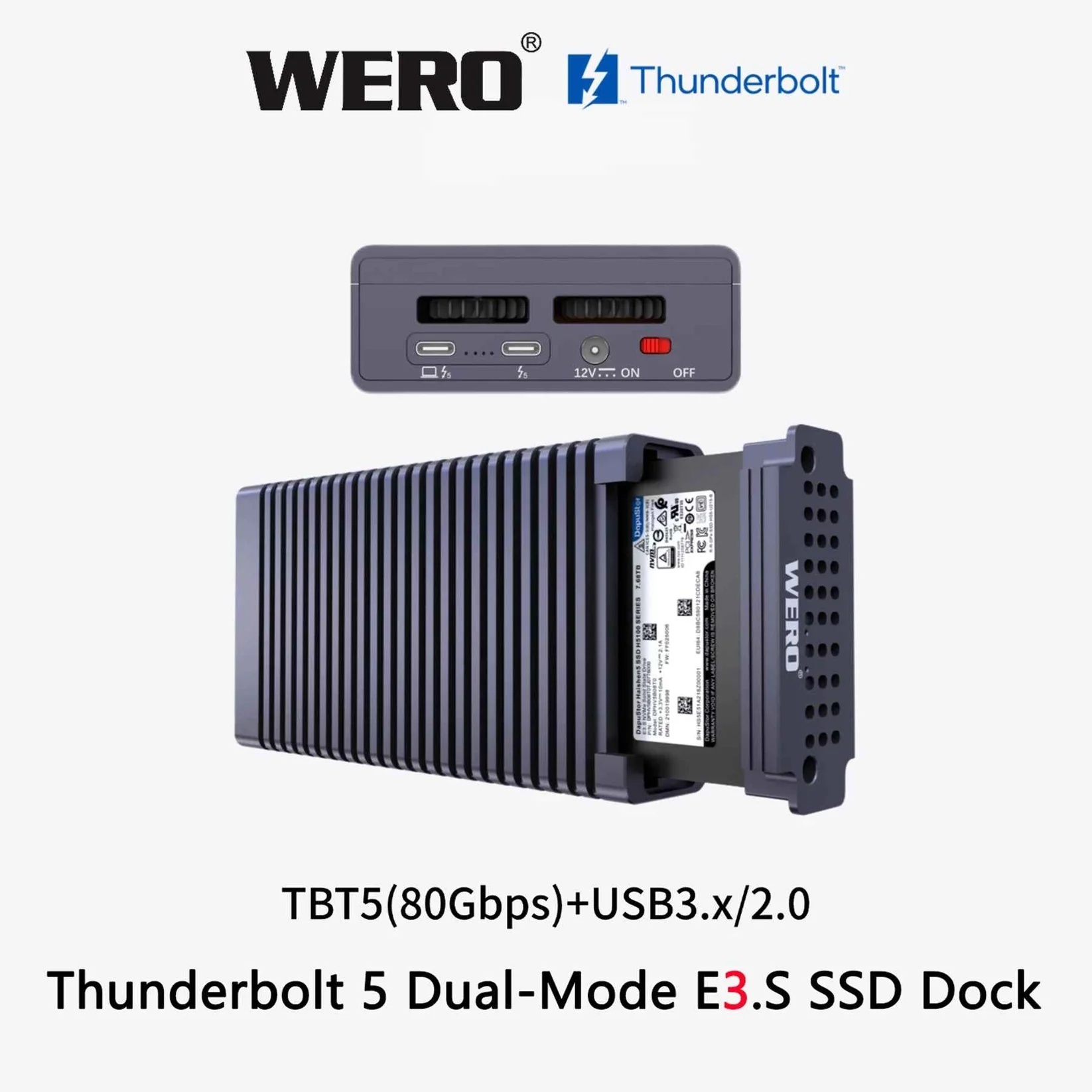

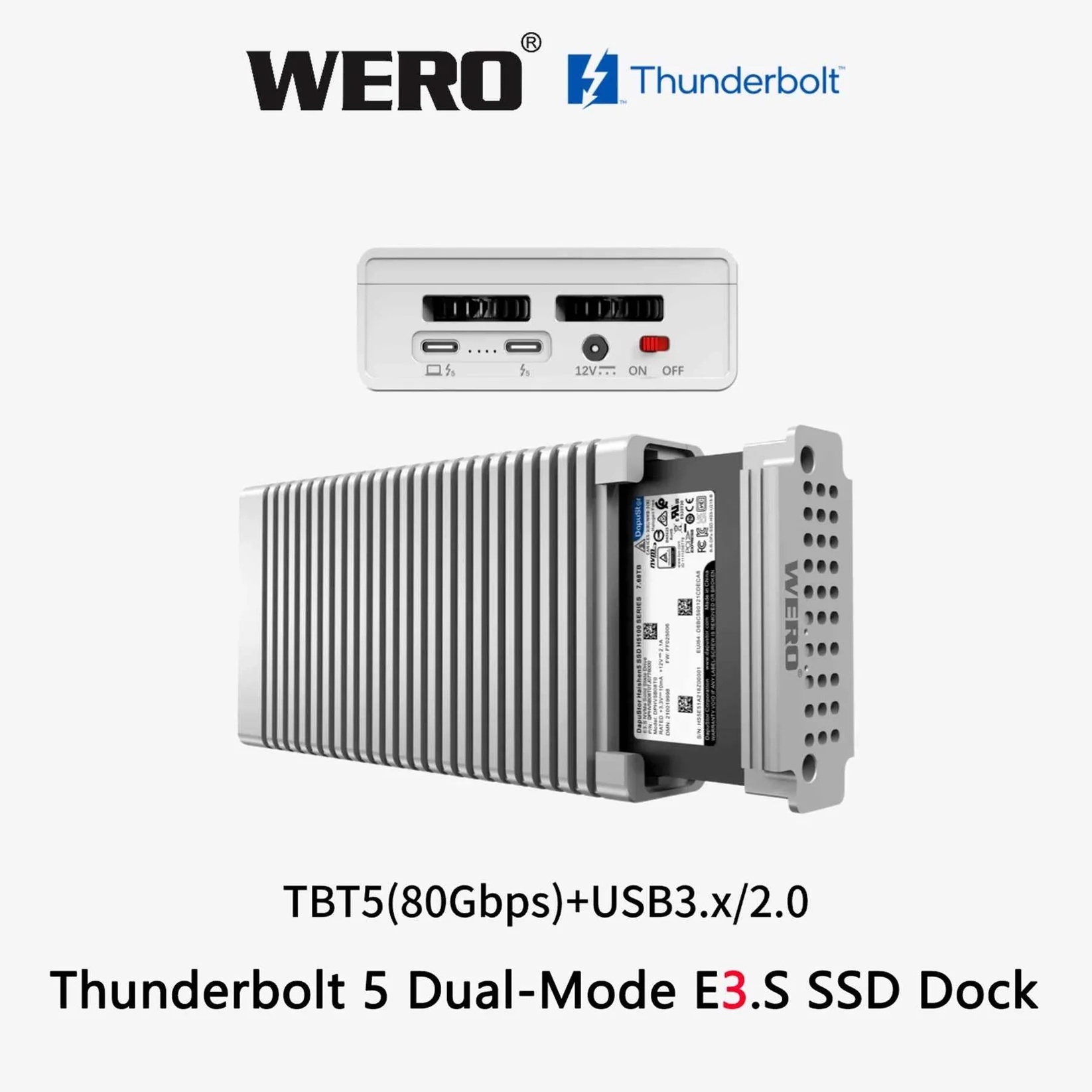

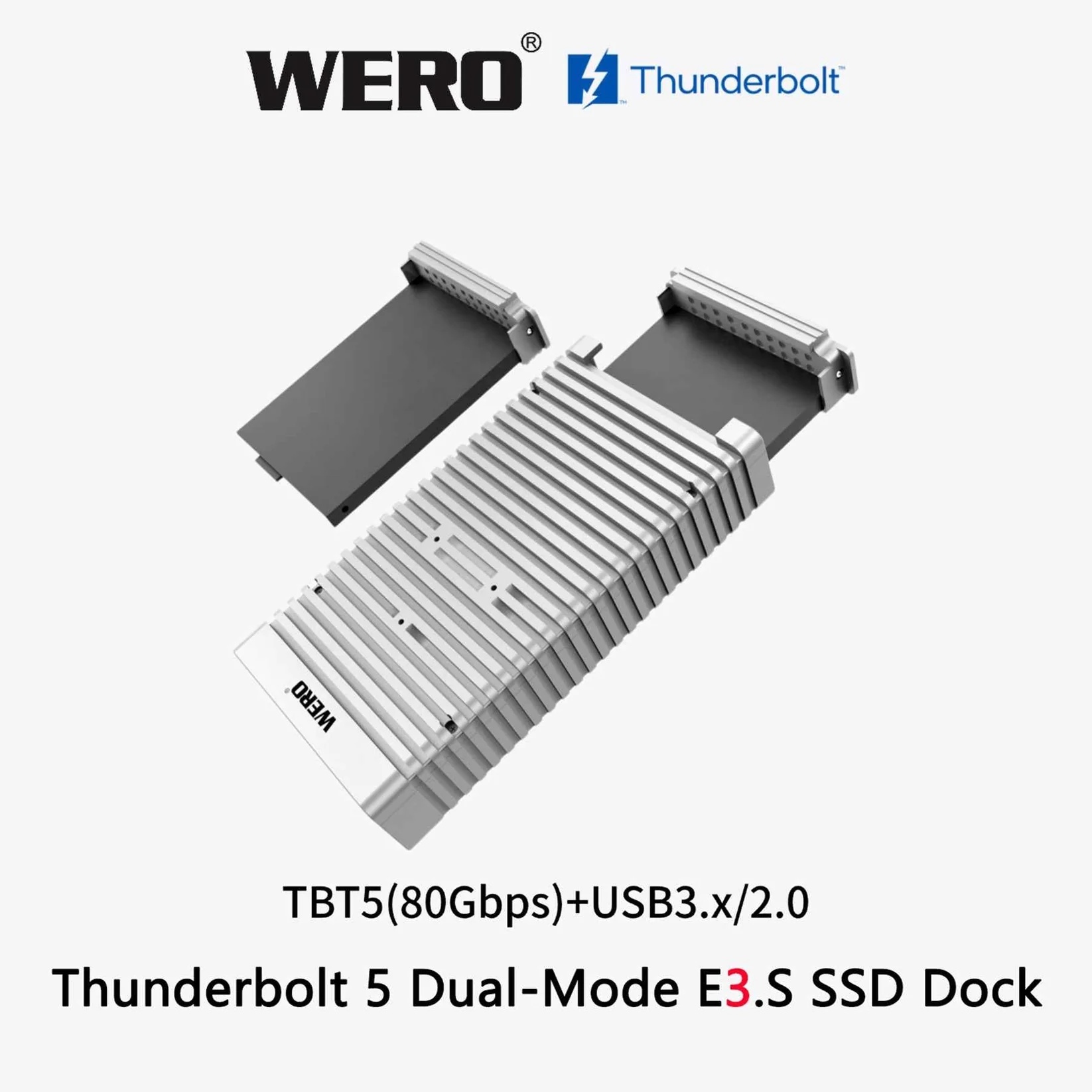

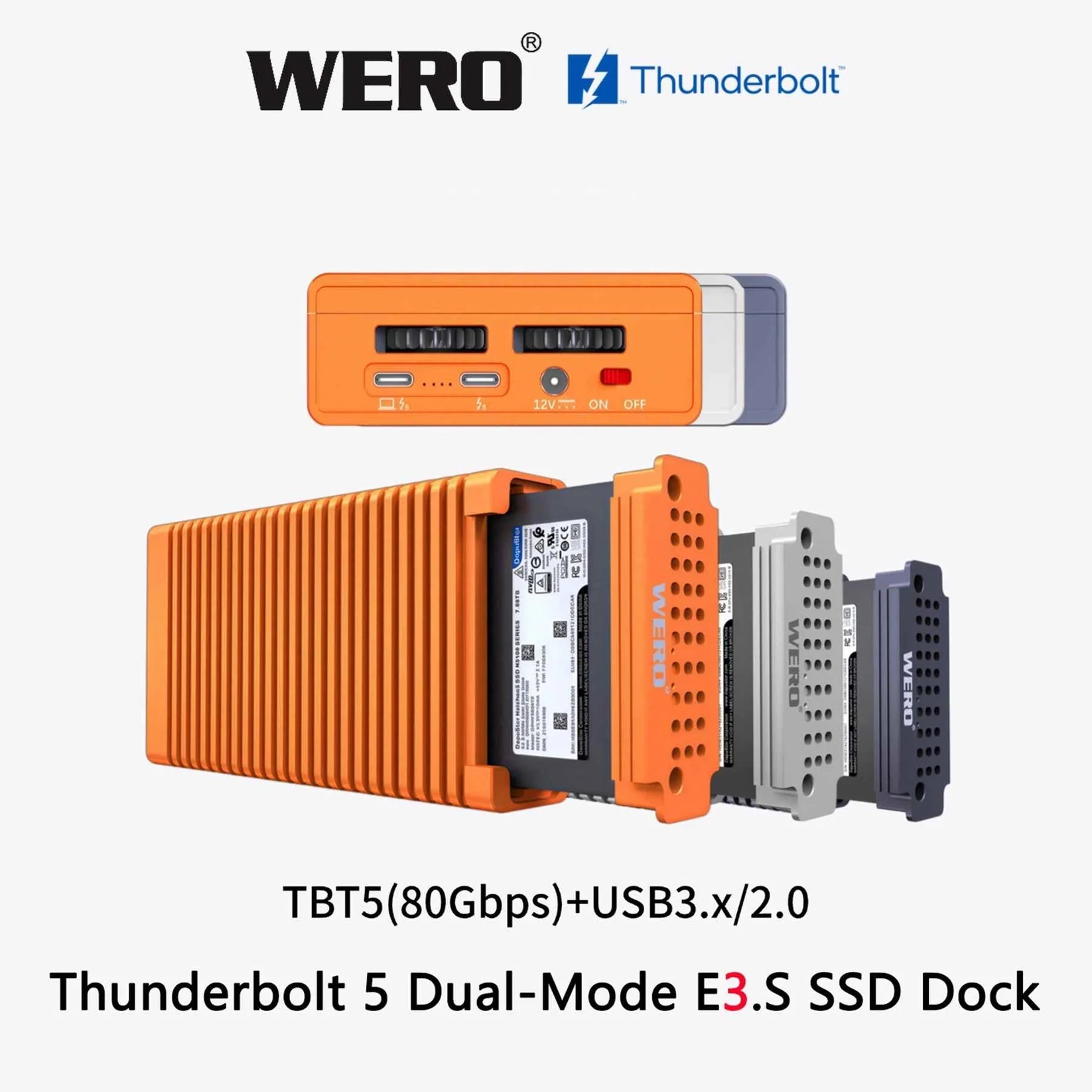

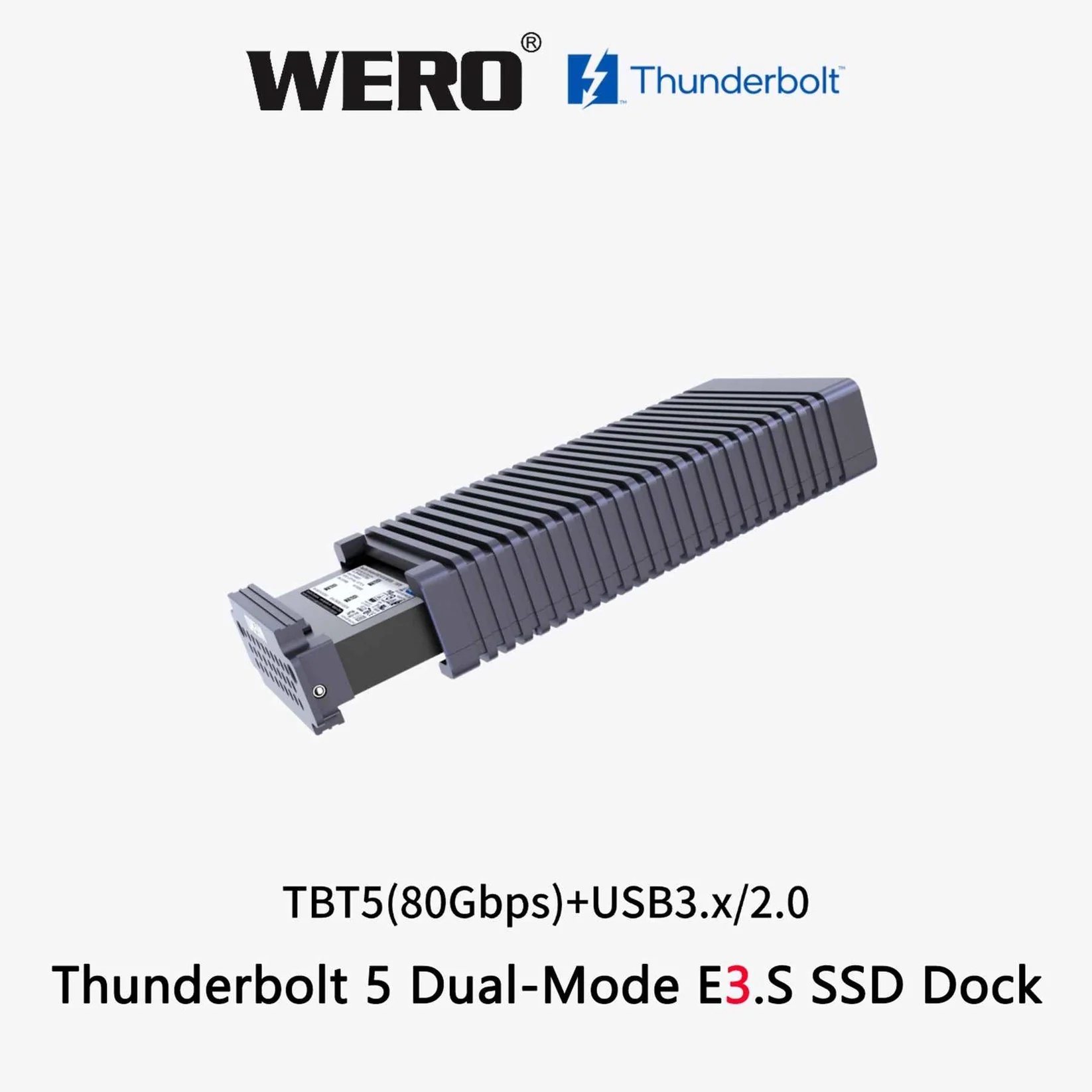

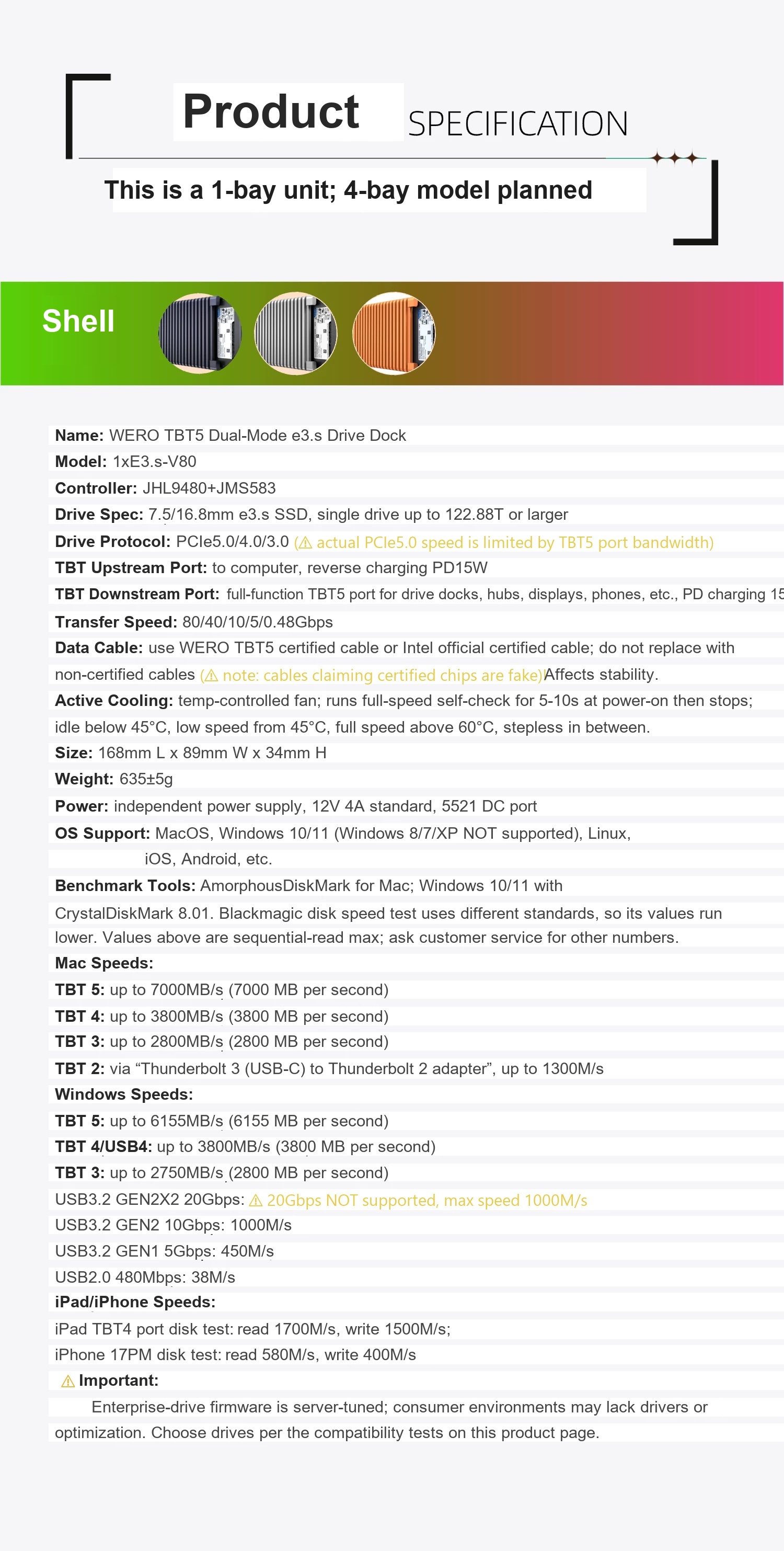

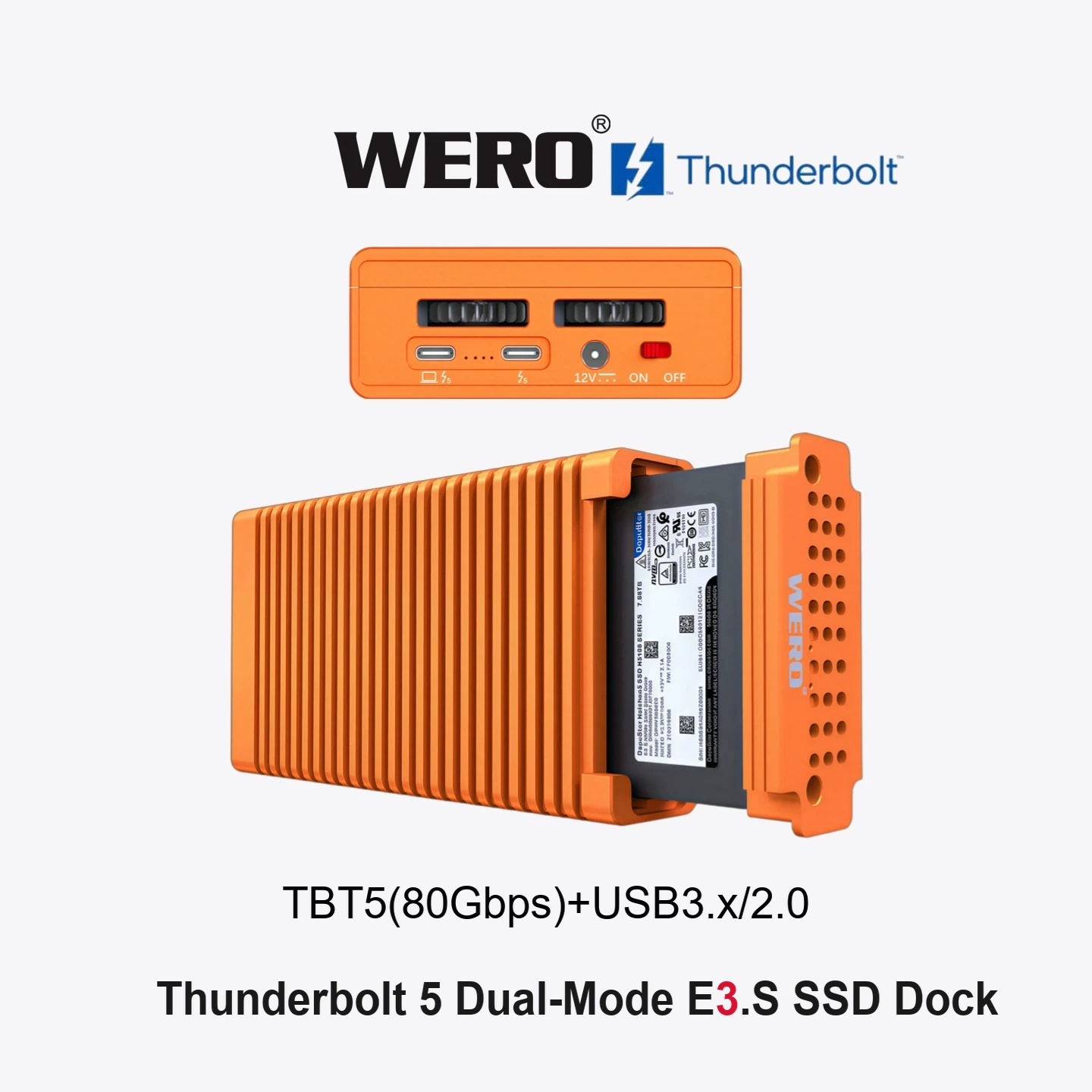

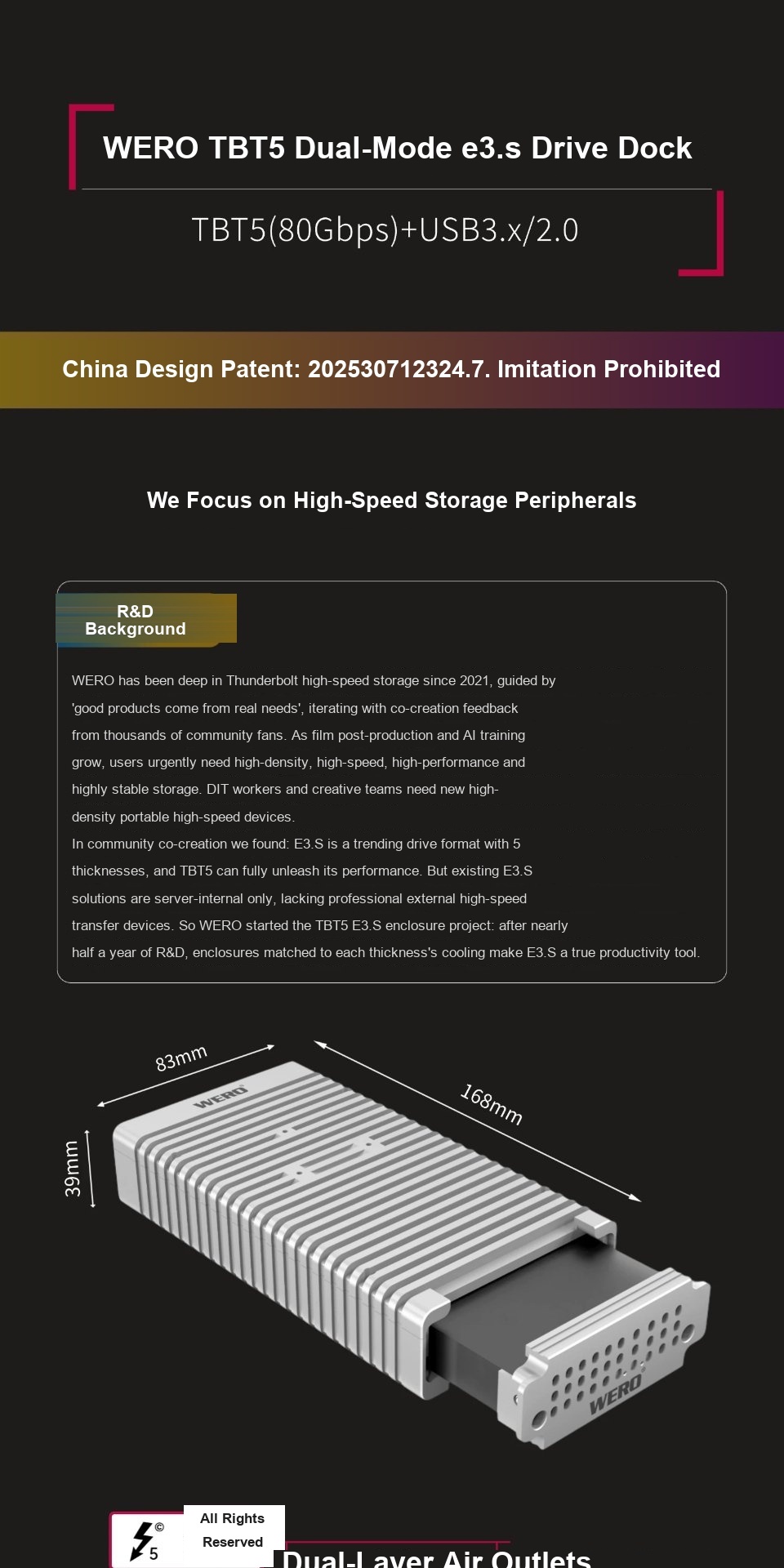

Name: WERO Thunderbolt 5 Dual-Mode e3.s SSD DOCK Station
Model: 1xE3.s-V80

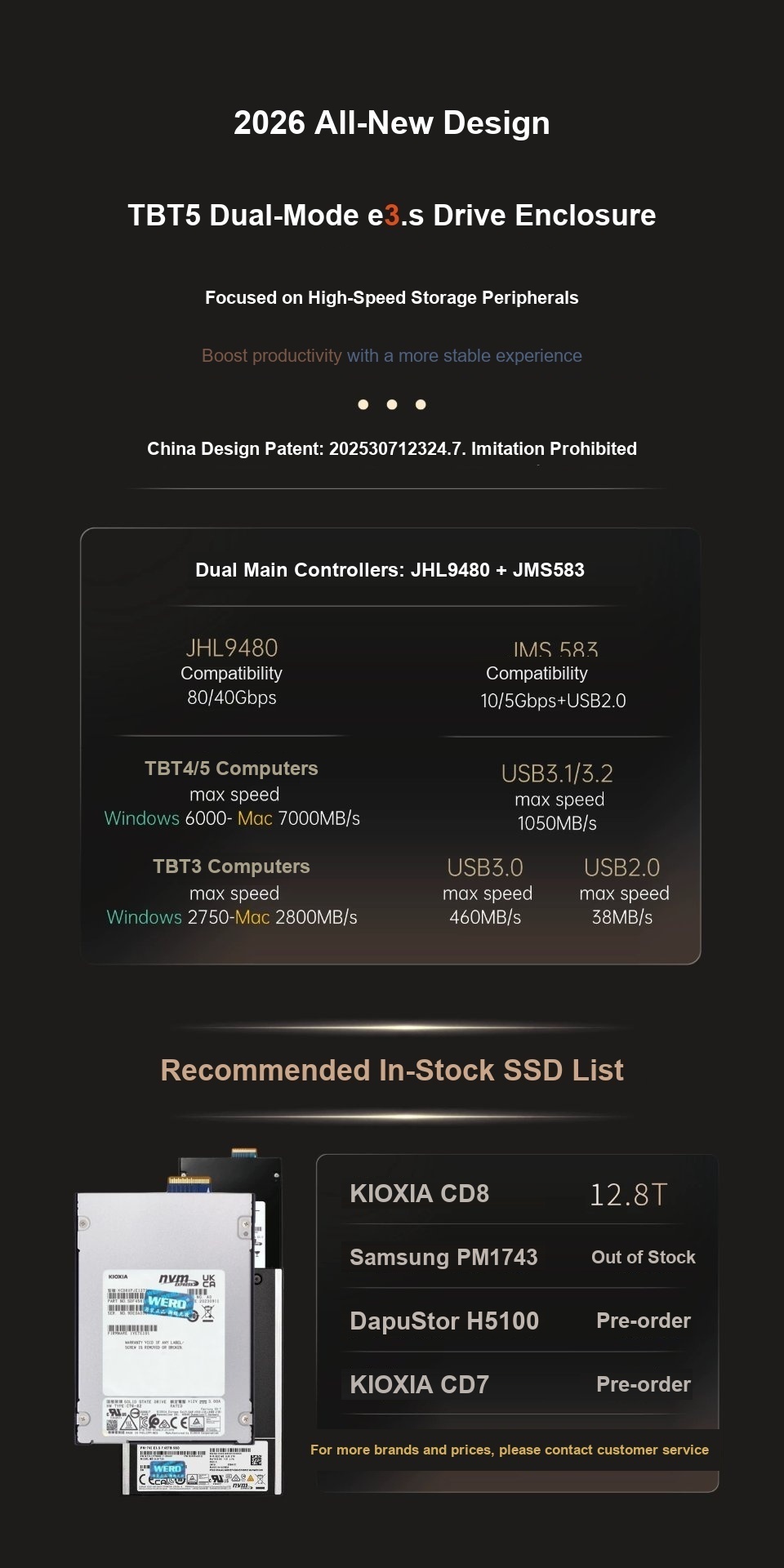

Controller: JHL9480 + JMS583
SSD Compatibility: 7.5/16.8mm e3.s SSD
SSD Transfer Protocol: PCIe 5.0/4.0/3.0 compatible (⚠️ Actual speed of PCIe 5.0 drives is limited by Thunderbolt 5 port bandwidth)

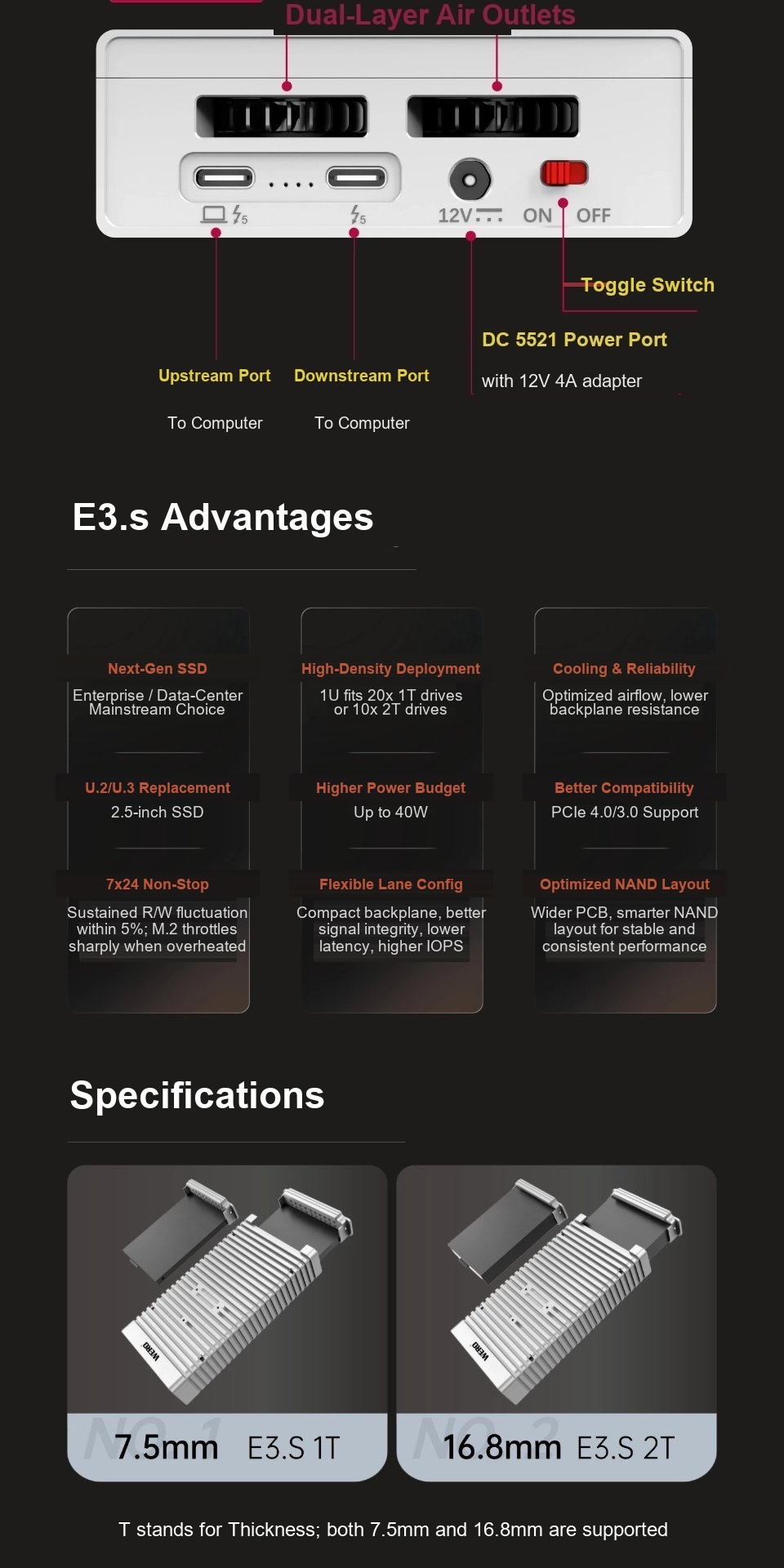

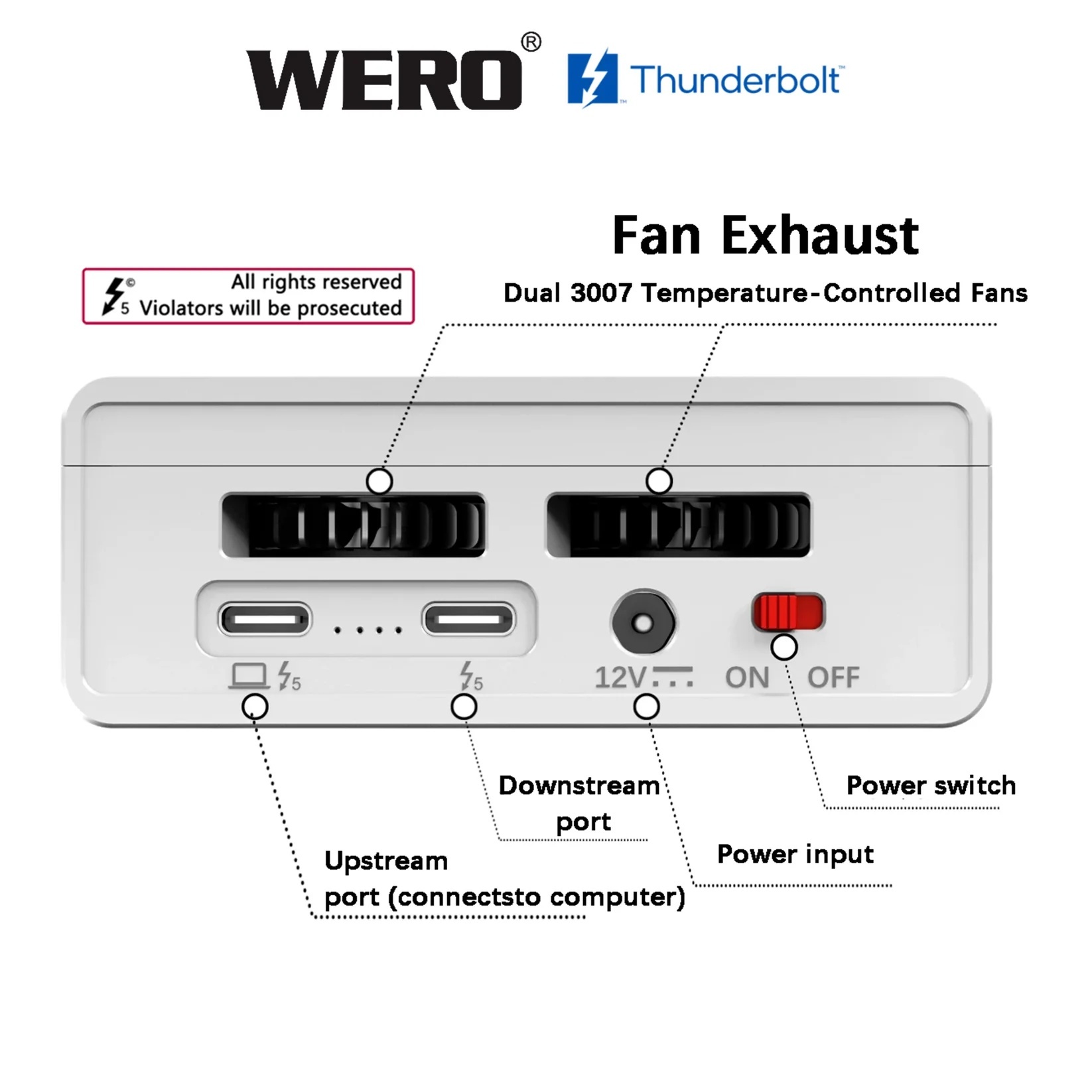

Thunderbolt Upstream Port: Connects to computers; Supports 15W PD reverse charging
Thunderbolt Downstream Port: Full-featured Thunderbolt 5 port; Compatible with hard drive enclosures, docks, monitors, mobile phones, etc.; Supports 15W PD charging
Transfer Speed: 80/40/10/5/0.48Gbps
Cable: WERO Thunderbolt 5 cable (Intel officially certified). DO NOT replace with non-officially certified cables (⚠️ Note: Cables claiming to have certified chips are fake! This will affect stability.)
Active Cooling: Temperature-controlled fan. Runs at full speed for 5-10 seconds during power-on self-test (POST) then stops. Remains off below 45°C, starts low-speed rotation at 45°C, and switches to full-speed rotation above 60°C. Stepless speed adjustment based on temperature in between.

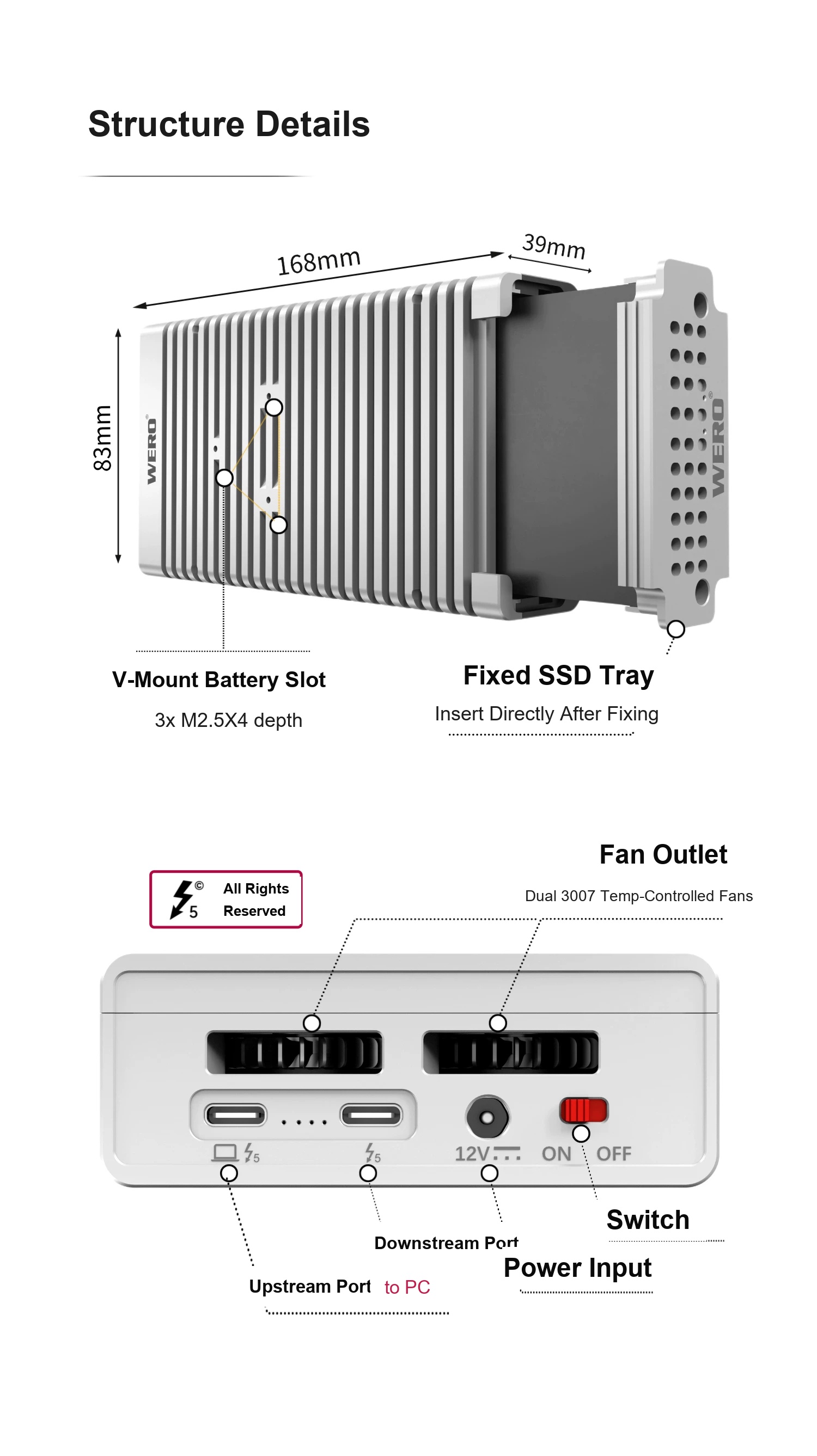

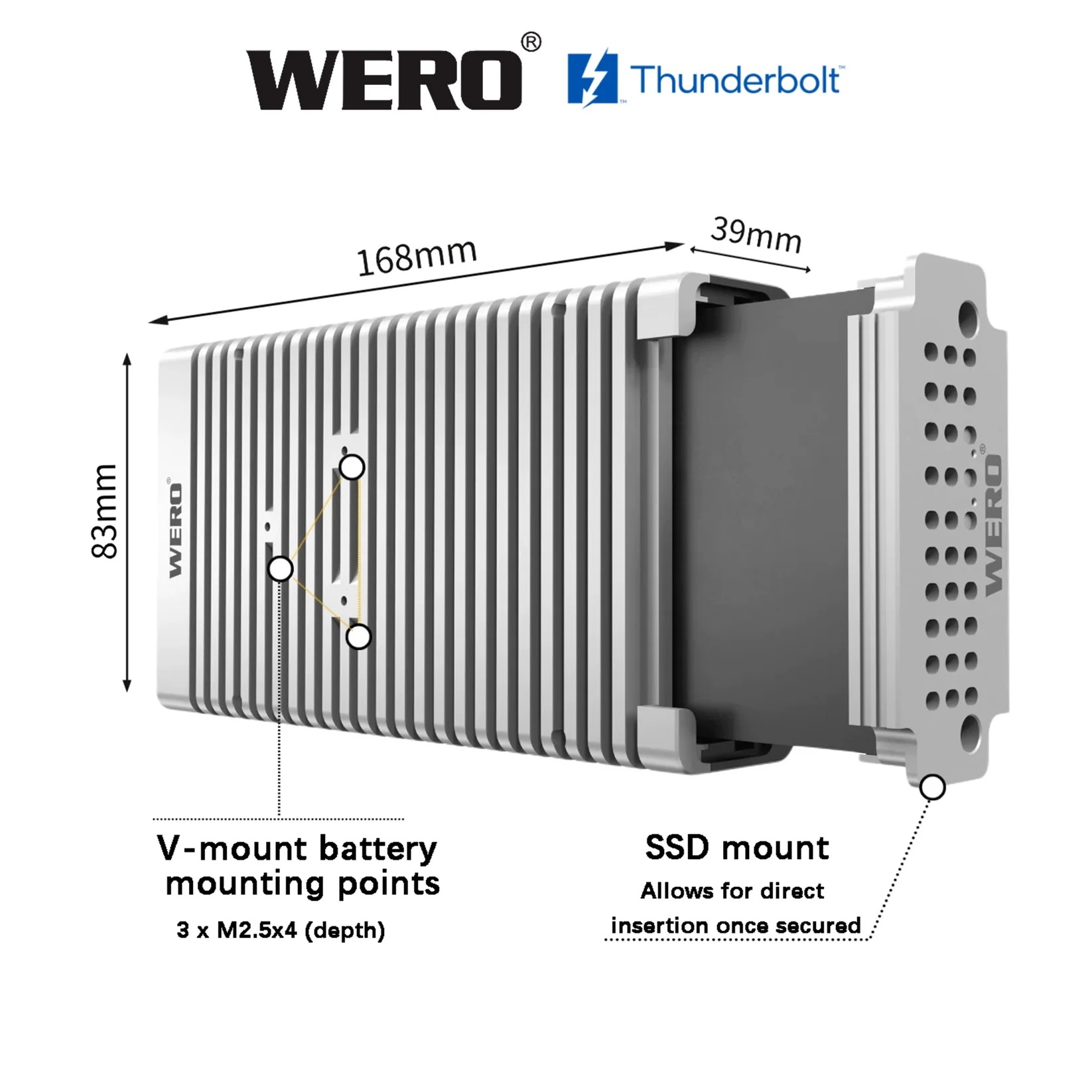

Dimensions: 168mm (L) × 89mm (W) × 34mm (H)
Weight: 635 ± 5 grams
Power Supply: Independent power adapter (12V 4A, 5521 DC port).
System Compatibility:MacOS, Windows 10/11 (Does not support Windows 8/7/XP, etc.)、Linux、iOS, Android, etc.

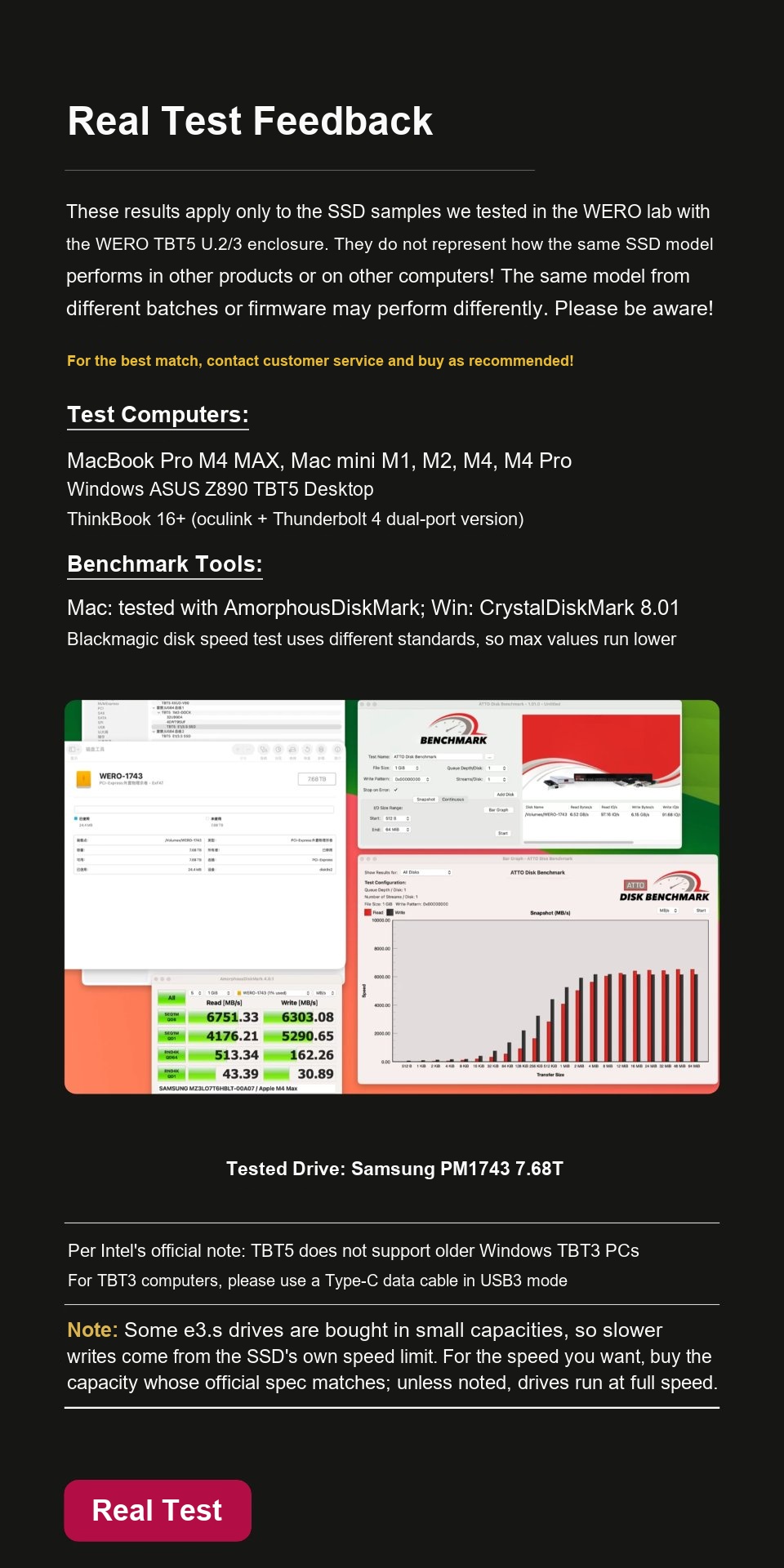

Speed Testing Tools
For Apple Mac: Use AmorphousDiskMark；For Windows 10/11: Use CrystalDiskMark 8.01
⚠️ Note: Blackmagic Disk Speed Test may show lower values due to different testing standards. The above speeds represent maximum sequential read speeds. For other values, please contact customer service.

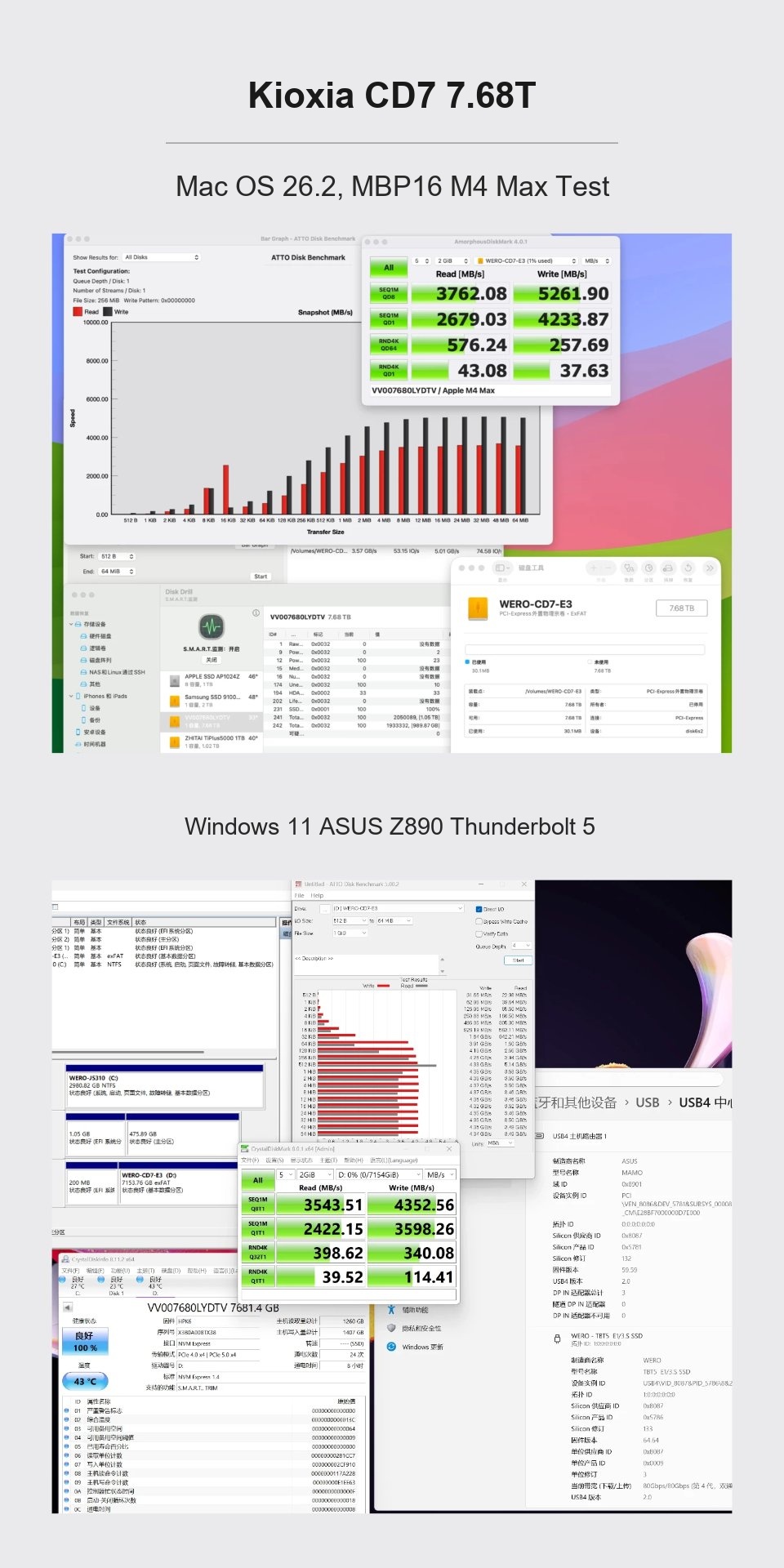

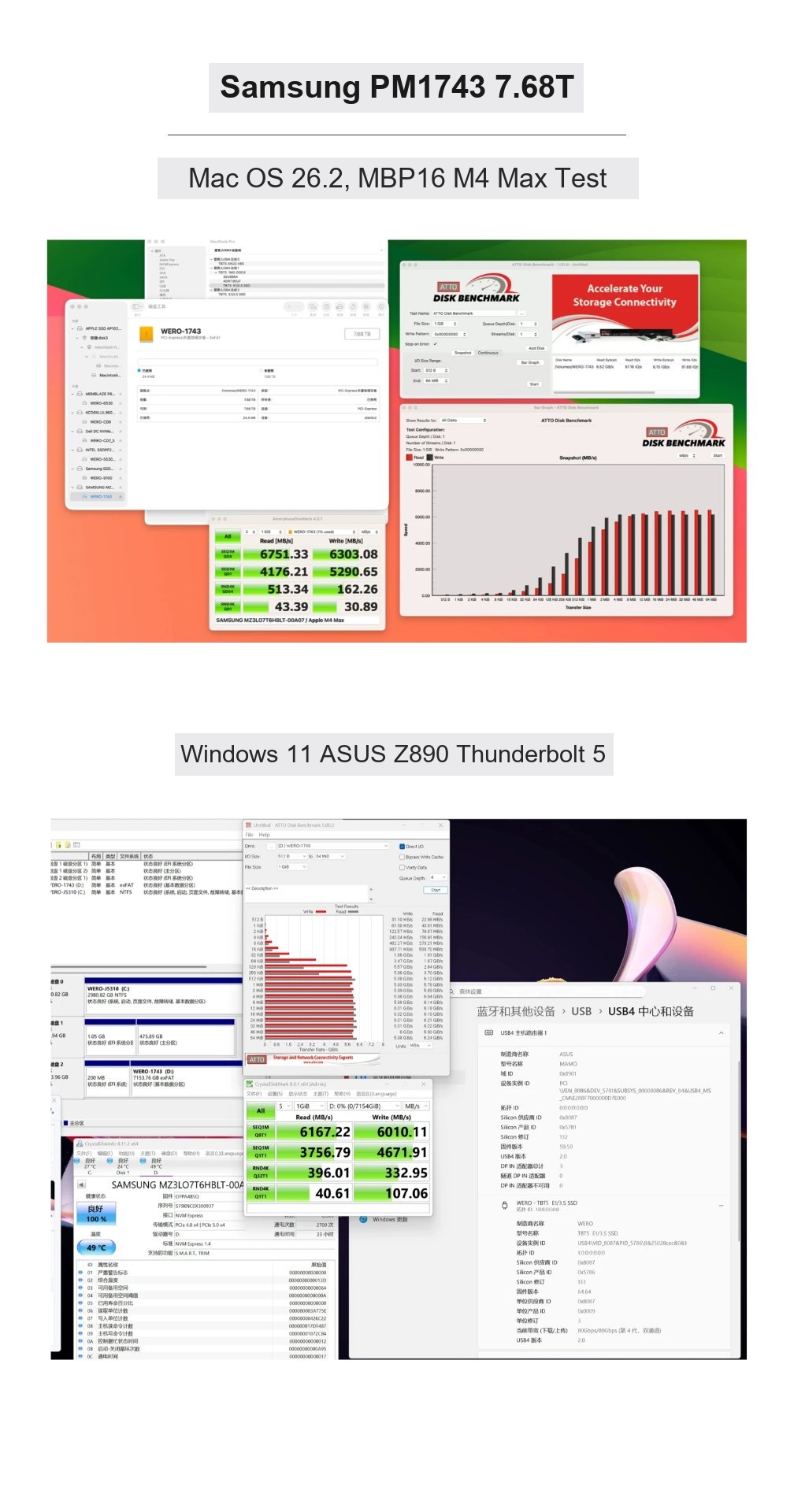

Speed Performance On Mac
Thunderbolt 5: Up to 7000MB/s (7000 megabytes per second)
Thunderbolt 4: Up to 3800MB/s (3800 megabytes per second)
Thunderbolt 3: Up to 2800MB/s (2800 megabytes per second)
Thunderbolt 2: Supported via “Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter”; Speed up to 1300MB/s
On Windows
Thunderbolt 5: Up to 6155MB/s (6155 megabytes per second)
Thunderbolt 4/USB4: Up to 3800MB/s (3800 megabytes per second)
Thunderbolt 3: Up to 2750MB/s (2750 megabytes per second)
USB3.2 GEN2X2 20Gbps: ⚠️ 20Gbps speed not supported; Maximum speed limited to 1000MB/s
USB3.2 GEN2 10Gbps: 1000MB/s
USB3.2 GEN1 5Gbps: 450MB/s
USB2.0 480Mbps: 38MB/s
On iPad/iPhone
iPad Thunderbolt 4 port (tested with Disk Test): Read 1700MB/s, Write 1500MB/s
iPhone 17 Pro Max (tested with Disk Test): Read 580MB/s, Write 400MB/s
⚠️ Important Notes
Enterprise SSD firmware is customized for server environments and may lack drivers or optimal performance for consumer use. Please refer to the compatibility test results on the product details page before purchasing hard drives.
