4 Channels SDI/HDMI Video switcher for Live Streaming Support HD Embedded Audio and External Analog Audio, Video switcher for Live Streaming 4 in 2 Out HDMI Video switcher--EX-HD-09

Name: 4 Channels SDI/HDMI Video switcher for Live Streaming Support HD Embedded Audio and External Analog Audio, Video switcher for Live Streaming
Brand: MY SHOP
SKU: EX-HD-09
Price: 199 USD
Availability: InStock

No.EX-HD-09

SKU: EX-HD-09

0.0 (0)

0 Sold

$199.00 ~~$199.00~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

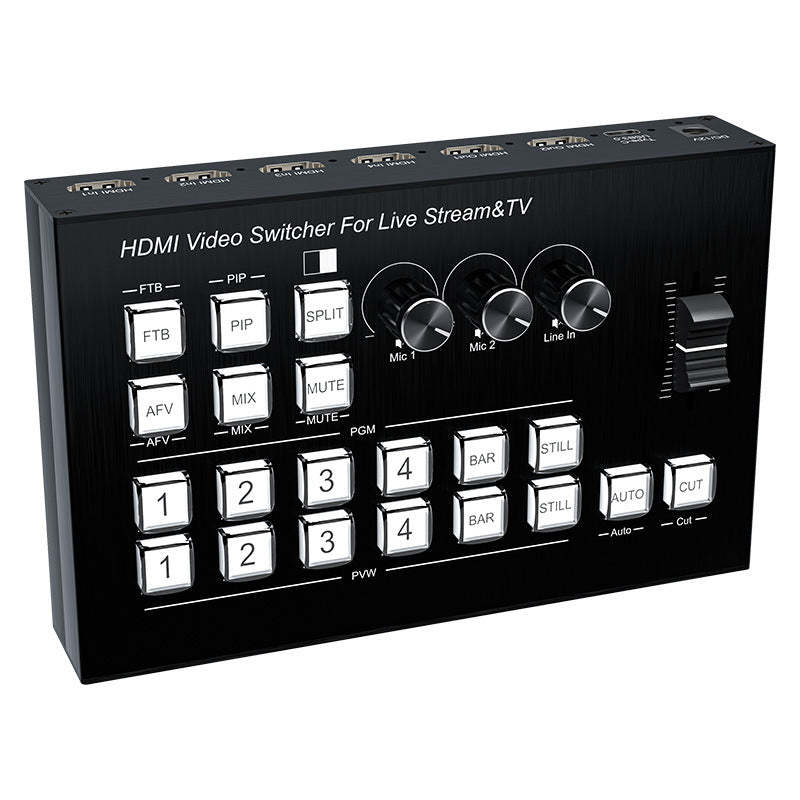

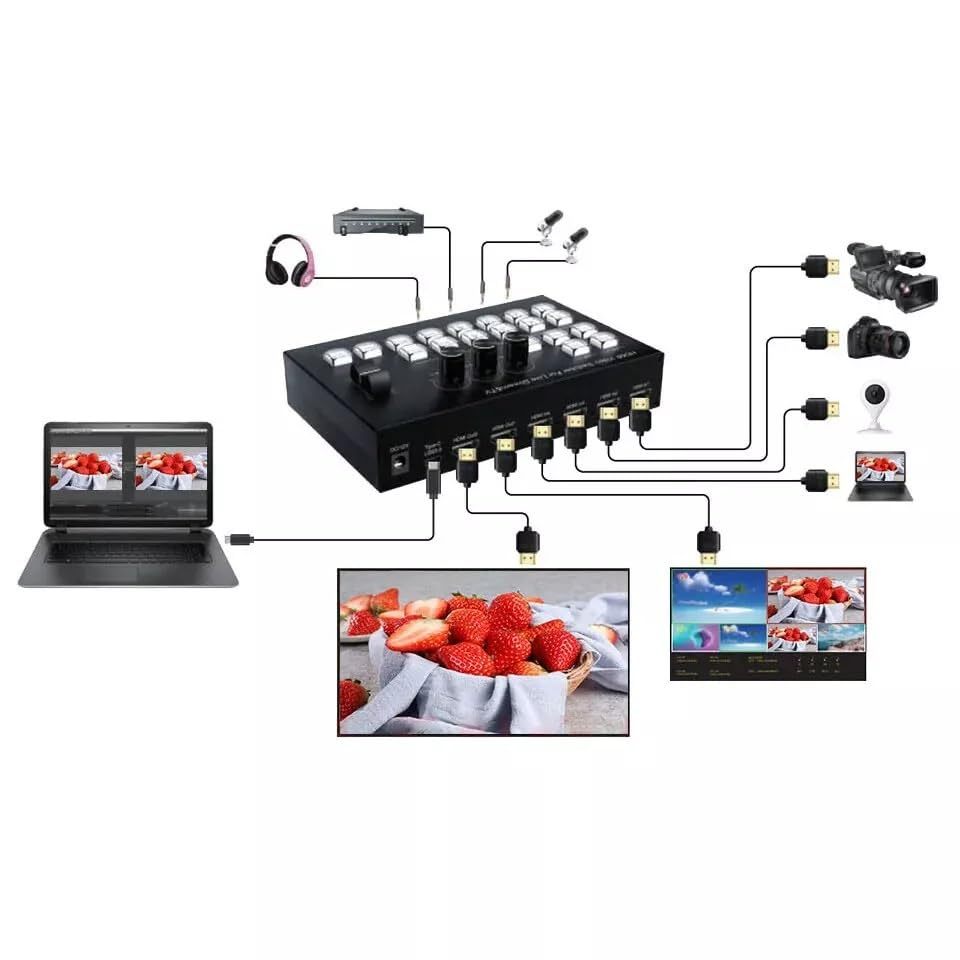

Video switcher for live streaming is with 4 HDMI inputs and 2 HDMI outputs, compatible with HDCP1.4 standard. Support HD embedded audio + External analog audio, after mixed processing, can be embedded in the output HD signal or output from the analog port.

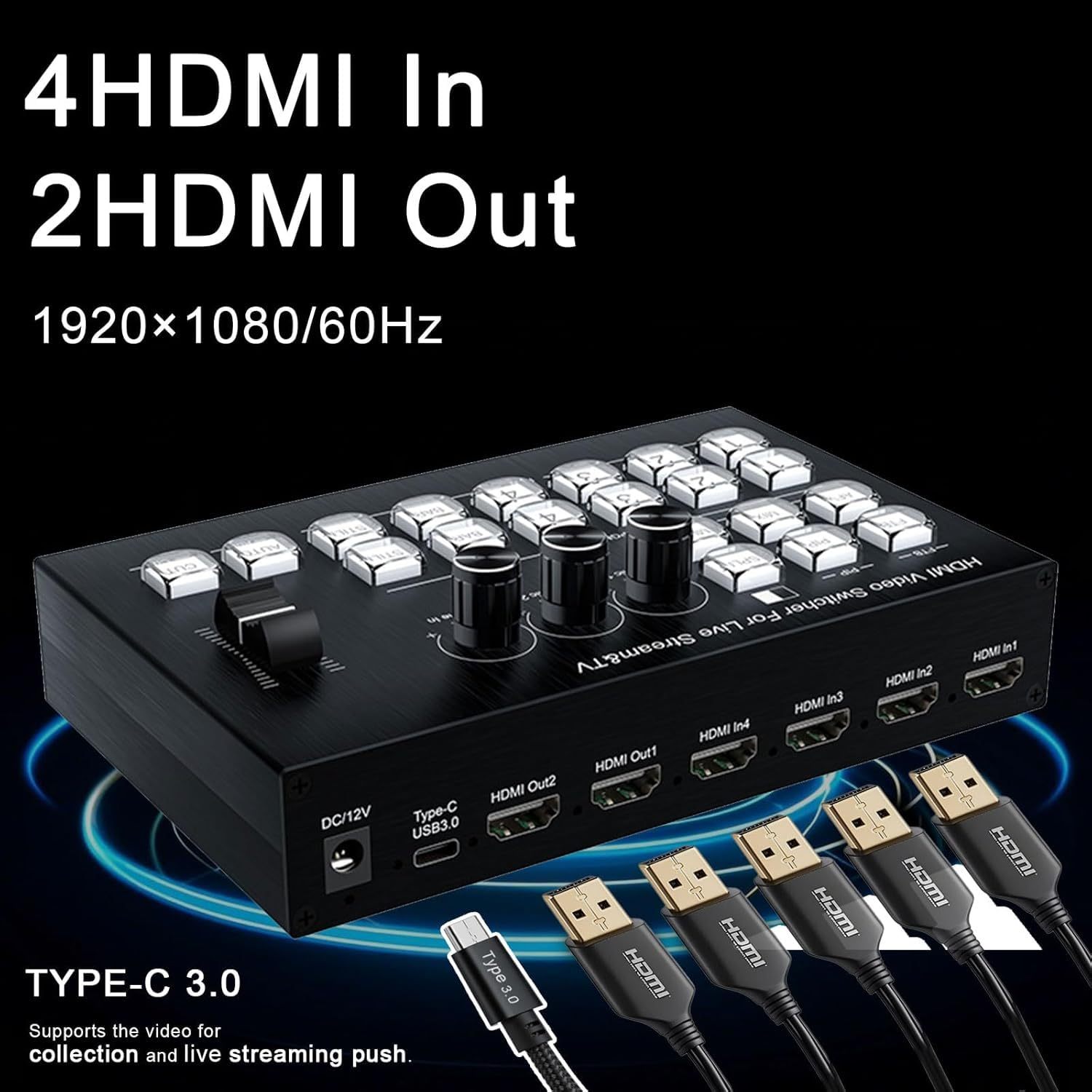

▶【support 4HDMI Input,2HDMI+1Type-C USB3.0 Capture Output;】This 4K Video Mixer Switcher Supports 4HDMI Input,2HDMI Output and 1Type-C USB3.0 Capture port Output. Meet the needs of a variety of devices, and can carry out real-time live picture acquisition, convenient for repeated viewing.

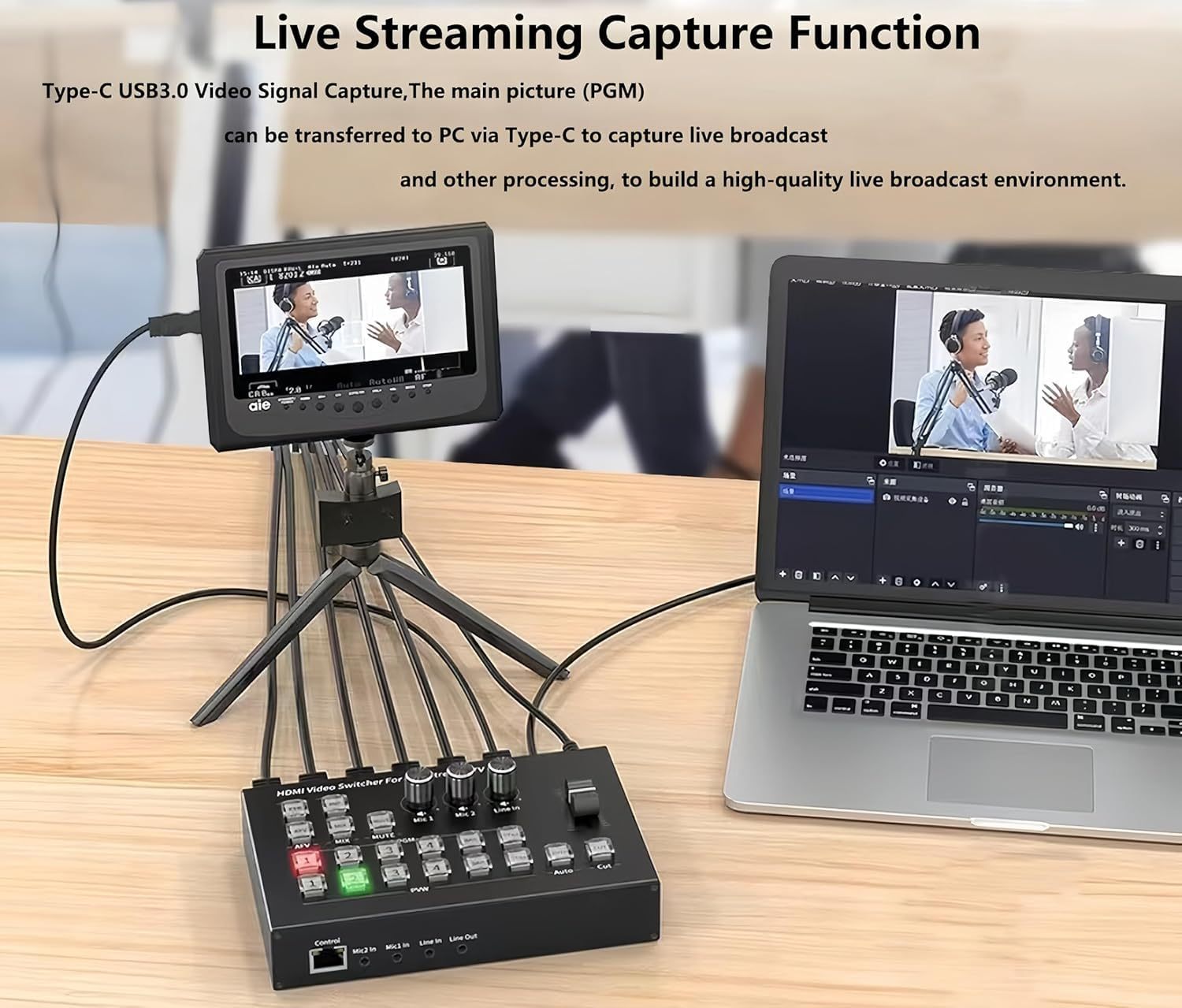

▶【Supports OBS Acquisition】Capture operation steps(OBS): Open the software -->Add new sources -->Choose “Video Capture Device“/ “Audio Input Capture” -->Set the size of the image -->Choose “Studio Mode”(double windows) -->Click “Start Recording”.
▶【support Audio Mixer】This 4K multi-camera Video Mixer Switcher Support MIC, LINE IN,HD mixing output (LINE OUT fixed mixing output,HD following or mixing);Support HD audio following (fixed following PGM), Rich audio mixing and audio adjustments provide better live streaming results.
▶【Supports Picture-in-Picture Function】This Multi-camera live streaming Video Mixer Switcher Supports Picture-in-Picture dual-camera display. click the “PIP” button to enter PIP mode: the small screen displays the pre-cut live screen (PVM), and the large screen displays the live main screen (PGM).
▶【Support “Fade-in/Fade-out” transitions】This 4K multi-camera Video Mixer Switcher Supports Fade in and out transitions between PVM and PGM images by sliding key.
▶【Supports 4K@30Hz】This Multi-camera live streaming Video Mixer Switcher Supports HDMI input resolution Up to 4K@30Hz and stabilized output resolution 1080P@60Hz,Provides high-definition picture quality!

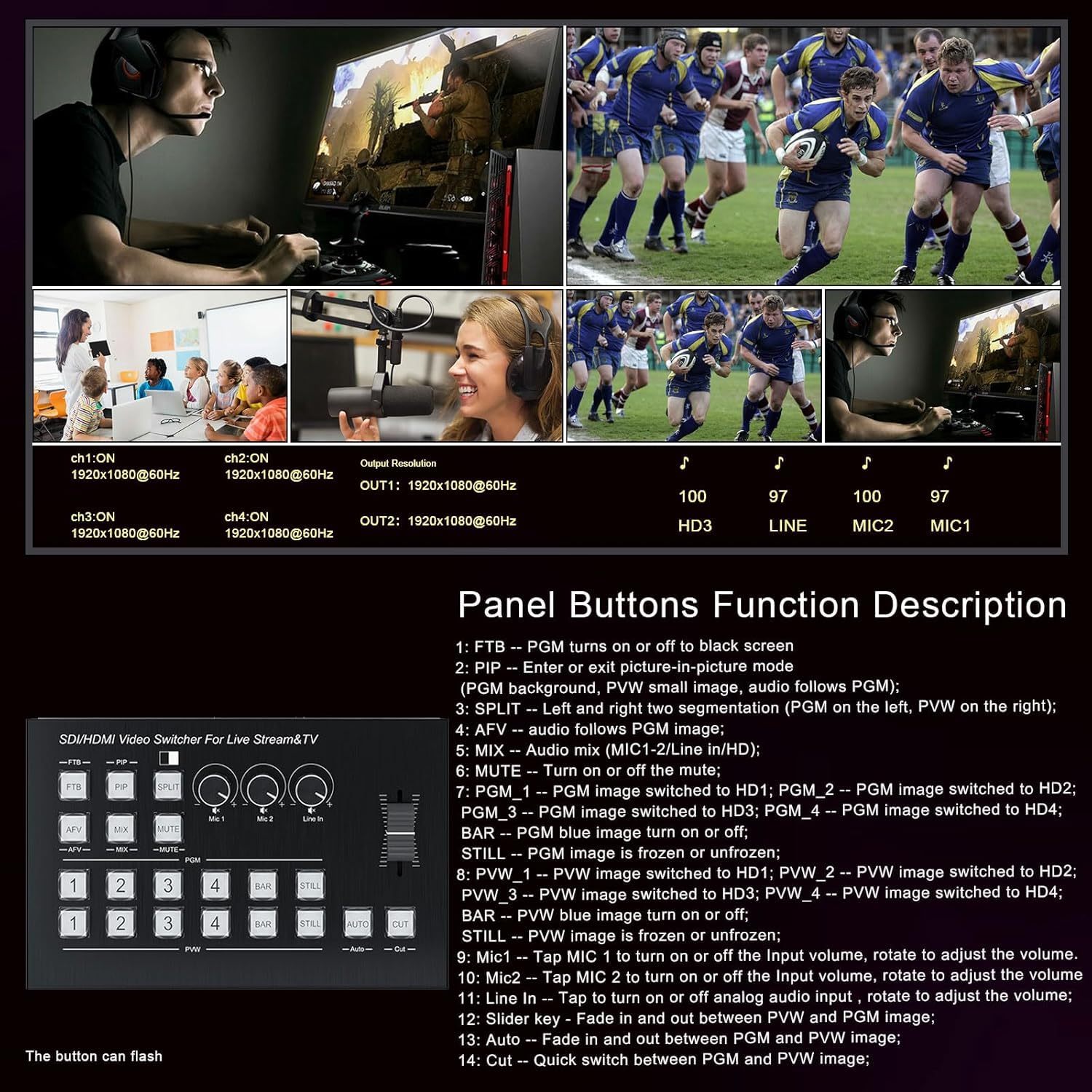

▶【Supports OSD Information Visualization】This Multi-camera live streaming Video Mixer Switcher Supports OSD display input channel signal, resolution information, volume information.
