This guide explains exactly when you get two independent screens, when you get two identical ones, and how to confirm which group you are in before spending anything.
There is a naming trap in this category of product that costs buyers a lot of money. Sellers advertise "display splitters," but a splitter and an MST hub are two different things:
| Term | What it does | Result on your desk |
|---|---|---|
| SST (Single-Stream Transport) | Sends one video stream to both outputs | Two identical images — mirroring |
| MST (Multi-Stream Transport) | Packages two independent streams into one DP link and unpacks them at the output | Two different screens — extended desktop |
A cheap passive HDMI splitter shows the same picture on both TVs. An MST hub does the harder job: it multiplexes two separate display streams into a single DisplayPort connection, then separates them again so each monitor receives its own signal. That is why an MST hub costs more than a passive splitter, and why using the word "splitter" to describe it has confused an entire product category.

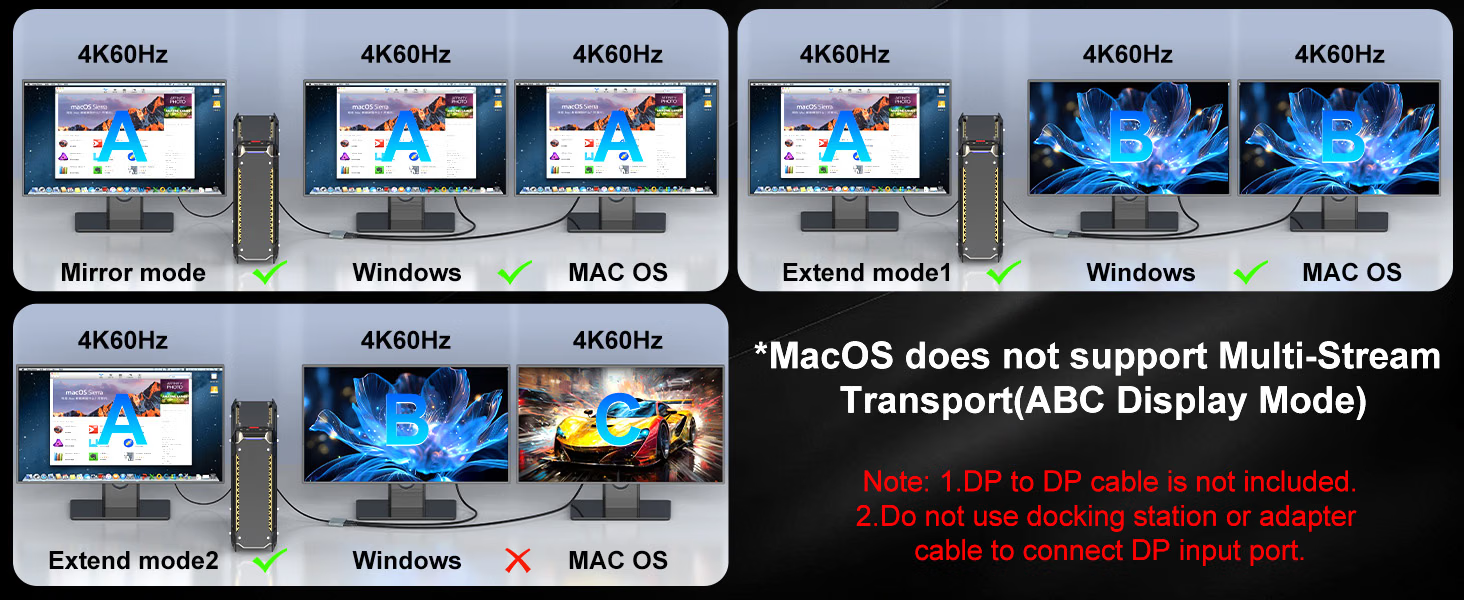

| Your setup | Extended desktop | Mirror mode |
|---|---|---|
| Windows + dedicated AMD / NVIDIA GPU with DP 1.4 | Yes — AAA / ABB / ABC layouts | Yes |
| macOS | No — SST only | Yes — both screens identical |
| Windows + integrated graphics | Often unavailable | Usually yes, sometimes no output at all |
| Source is a USB hub, dock or KVM switch | Not supported | Not supported |
If you are on a Mac and your goal is a wider desktop across two panels, an MST hub will not do it. No adapter in this category will — the limitation lives in macOS, not in the hardware. Mac users who need two independent screens should use two separate video outputs on the Mac itself (Thunderbolt ports on Apple silicon Macs handle this well), not a splitter.
If you are on Windows with a discrete GPU, you are in the target group, and the rest of this article is for you.
Why do two displays cap at 4K@60Hz when a single display can reach 8K@60Hz or 4K@120Hz? Because every stream has to fit inside one pipe.
DisplayPort 1.4 provides 32.4Gbps of raw bandwidth (using HBR3 signalling). Two 4K@60Hz streams fit within that budget. Two 4K@120Hz streams or two 8K streams do not — they would need roughly double. So the design rule for an MST hub is simple and unavoidable:
This also explains the most common support question: "why does my 4K@144 monitor only show 60Hz?" It is not faulty — two high-refresh 4K streams exceed the interface's capacity. Set both monitors to the same resolution and refresh rate, because mismatched timing modes can cause one output to drop entirely.
No drivers or software are required. If extended mode does not appear, update your graphics card driver first — that resolves the majority of cases. The adapter also uses a non-locking connector by design, so a snagged cable releases instead of wrenching your GPU's port out of the board.
| Symptom | Most likely cause | Fix |
|---|---|---|
| Both monitors show the same picture | Mirror mode is enabled, or you are on macOS / integrated graphics | On Windows press Win+P → Extend. On macOS, extended is not available — see the compatibility table above |
| Only one monitor is detected | Insufficient power, or a DP 1.2 source | Connect the USB-C power cable; verify the port is DP 1.4 |
| Nothing displays at all | Connected through a dock, hub or KVM; or no auxiliary power | Plug directly into the computer's DP port and connect power |
| Image flickers or drops intermittently | Low-quality or overly long DP cable | Swap for a certified DisplayPort 1.4 cable, 6ft/2m or shorter |
| One screen drops out when both are active | Mismatched resolution or refresh rate between monitors | Set both monitors to identical resolution and refresh rate |
| Stuck at 4K@30Hz or 1080p | DP 1.2 source, or bandwidth shared across two streams | Confirm DP 1.4 output; remember dual output caps at 4K@60Hz per screen |
| Extended option missing in Windows | Outdated graphics driver | Update the GPU driver, then reboot |
You have one DisplayPort port and two monitors. This is the core case: a desktop with a single DP output, a laptop whose only video out is DP, or a GPU whose other ports are already occupied by a third display or a VR headset.
You work across two full-size windows all day. Code on the left, browser on the right. Timeline on one screen, preview on the other. A spreadsheet and a reference PDF. Extended desktop is the entire value proposition, and once you have it, you will not go back.
You want a clutter-free desk. One small adapter and two cables replaces a docking station, and the unit is small enough to live in a laptop bag for travel setups.
And who should not buy it: Mac users who need two independent screens, anyone without a dedicated GPU, anyone whose only video output is HDMI or USB-C without DP Alt Mode, and anyone hoping to plug it into a docking station.
Yes, with an active MST hub on Windows with a DP 1.4-capable discrete GPU. A passive splitter cannot do this — it can only duplicate one stream, which is why cheap splitters show the same image on both screens.
Either mirror mode is active — fix it with Win+P → Extend on Windows — or you are on macOS, which supports SST only. If you are on a Windows machine with integrated graphics, mirroring may be the only mode available to you.
It will display, but only in mirror mode. macOS does not support MST for extended desktops, so both screens will show identical content. If you need a Mac extended desktop, use two separate video outputs from the Mac instead.
4K@60Hz on both outputs simultaneously, provided your source outputs DP 1.4. With only one monitor connected, a single screen can reach 8K@60Hz or 4K@120Hz.
Yes — connect the included USB-C power cable to a USB power source. The active MST chipset requires it to drive two displays reliably.
No. It must connect directly to your computer's DisplayPort output. Hubs, docking stations and KVM switches are not compatible.
No. It is plug and play. If extended mode does not appear, updating your graphics card driver resolves the majority of cases.
Only if you have a proper USB-C to DisplayPort cable feeding the adapter's DP input from a DP Alt Mode port. The adapter itself is DP in, DP out — it is not a USB-C device.
Two monitors from one DisplayPort port — $27.99
The DP 1.4 MST Hub splits a single DisplayPort 1.4 output into two displays at up to 4K@60Hz each, with a true extended desktop on Windows. Plug and play, no drivers, no dock required — includes the USB-C power cable. Check your GPU supports DP 1.4 before ordering.
