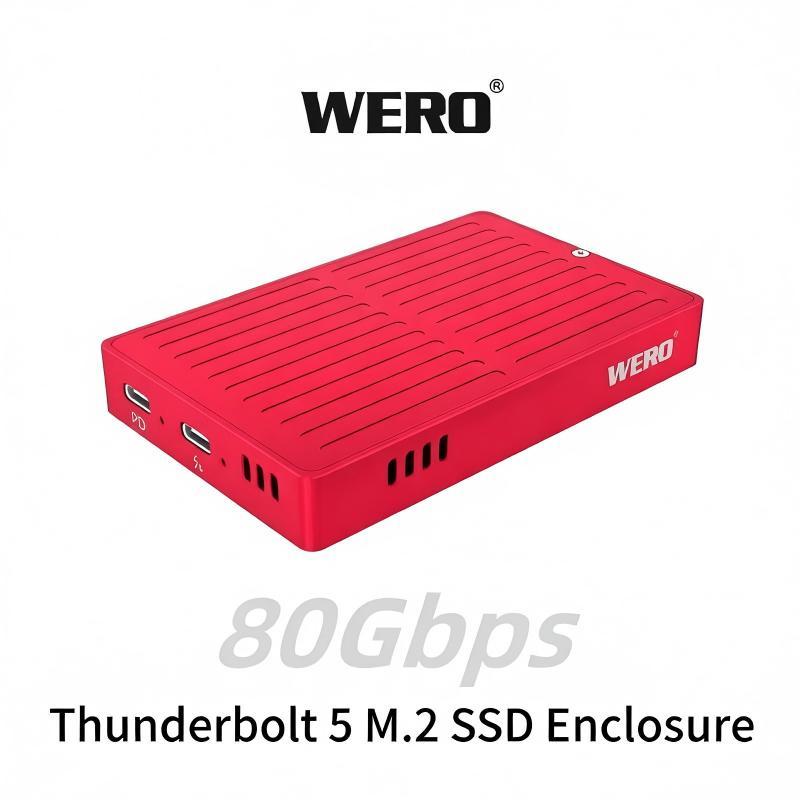

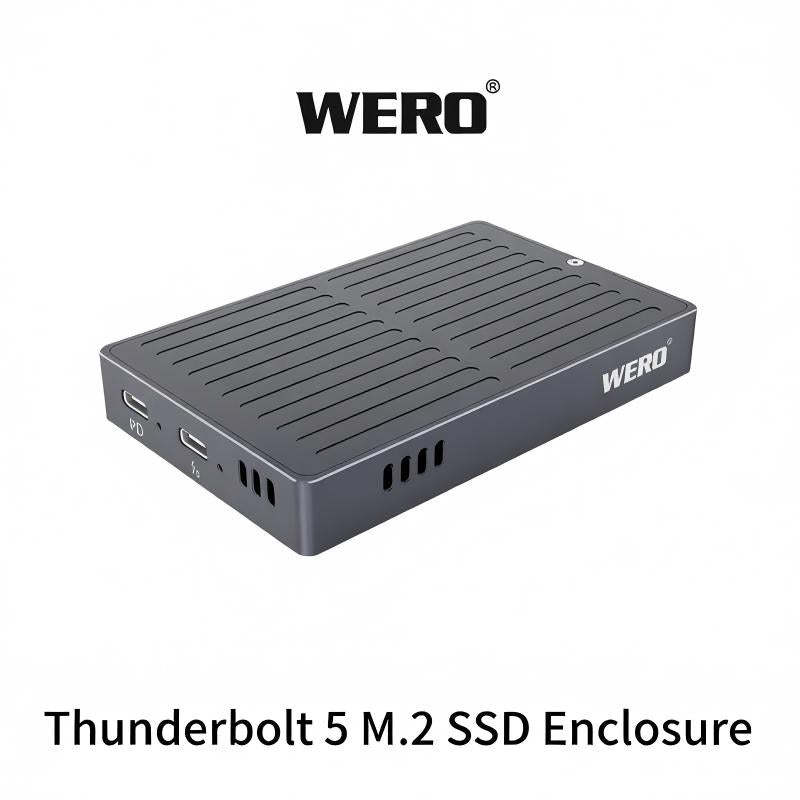

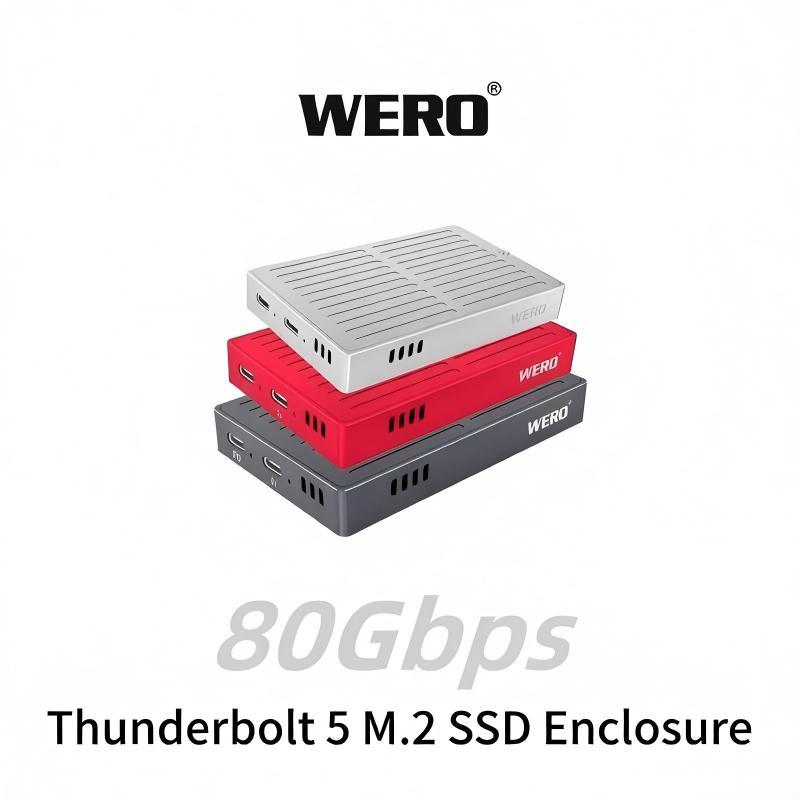

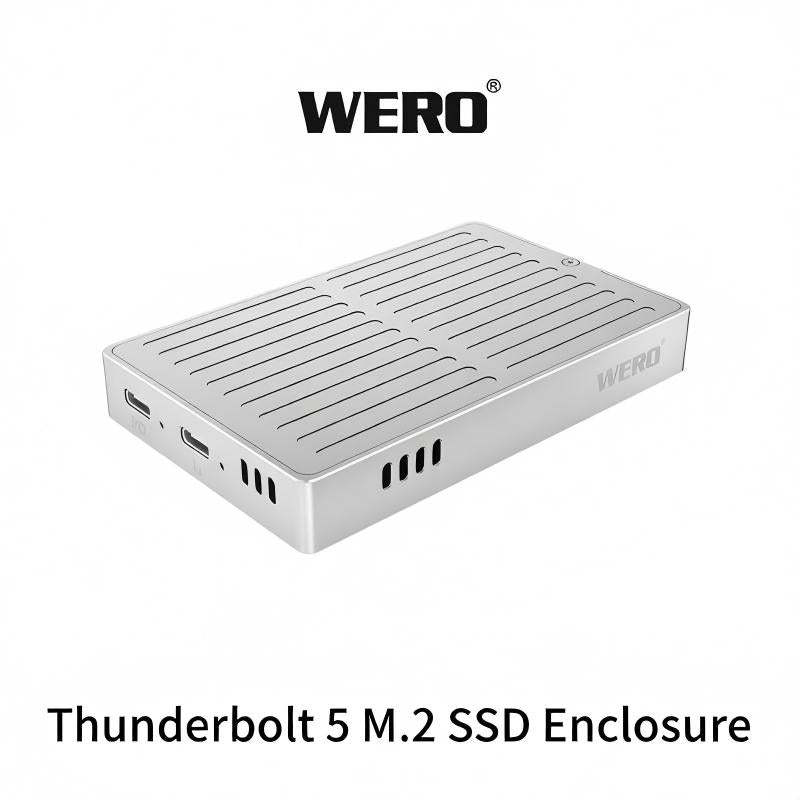

Product Name: WERO Thunderbolt 5 1M2 NVMe Enclosure
Model Number:TBT5001
Drive Interface: 2230/2242/2260/2280 M.2 NVMe (M-key)
Input Interface: USB-C
Transfer Speed: Up to 80Gbps
Active Cooling: Fixed - speed Fan
Mac Compatibility:

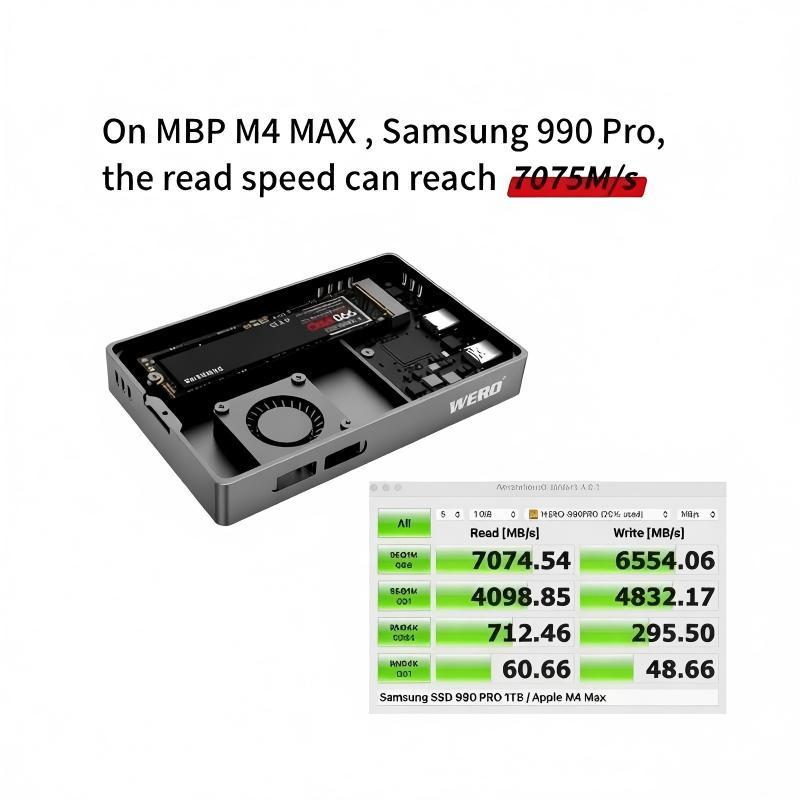

• Thunderbolt 5: Up to 7000MB/s
• Thunderbolt 4: Up to 3800MB/s
• Thunderbolt 3: Up to 2800MB/s
Windows Compatibility:
• Thunderbolt 5: Up to 6155MB/s
• Thunderbolt 4: Up to 3800MB/s
⚠Important Notes:
• Thunderbolt 5 requires Windows 11 24H2 or later for stable operation.
• Thunderbolt 4 on Windows 10 may work but is unsupported and unstable.
• Most Thunderbolt 3 Windows PCs (laptops/desktops) are incompatible unless
the thunderbolt firmware has been updated by the manufacturer.
• PCs (laptops/desktops) Thunderbolt 3 ports are generally unsupported due to
outdated firmware.
Dimensions: 136.6mm (L) × 103.6mm (W) × 43.6mm (H)
Weight: 747g

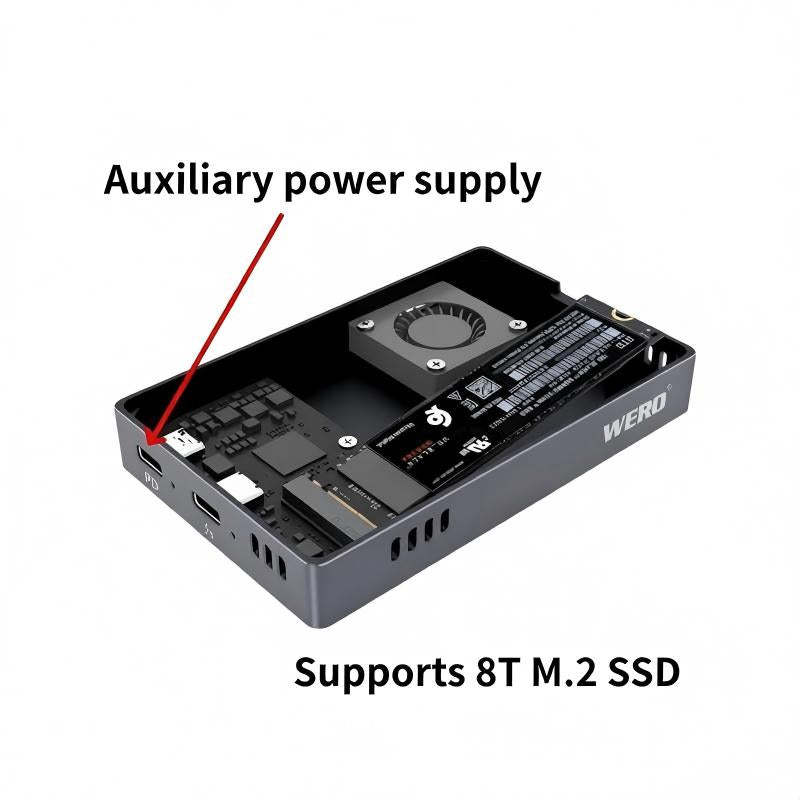

Power Supply: N/A (Buspower) + Auxiliary Power Supply Available
PD Auxiliary Power Supply Support:5V@3A, 9V@2A, 12V@1.5A, 15V@1.2A,
20V@1A
System Support: MacOS（15.X or later）, Windows 11 (24H2 or later)
